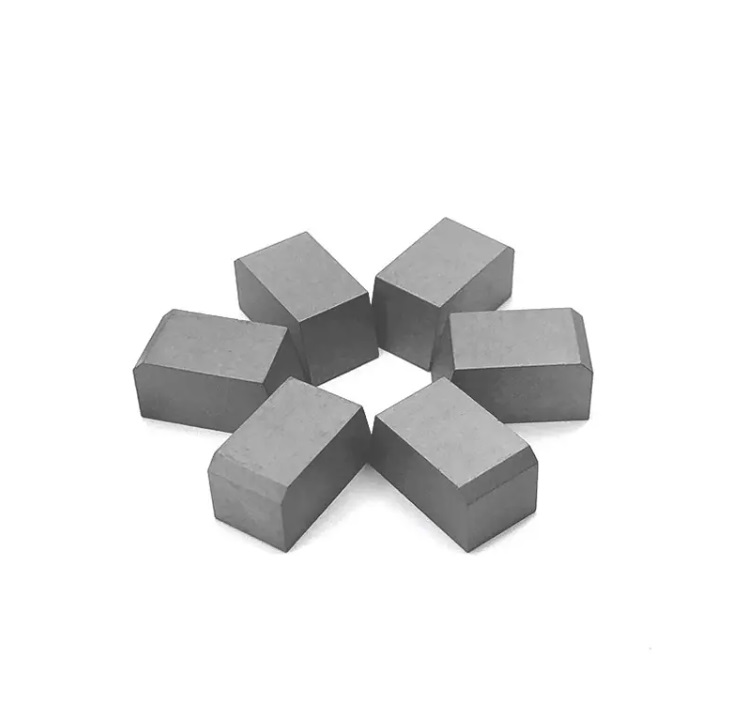

Tungsten Carbide Brazed Tips Type D
Tungsten Carbide Brazed Tips Type D
| Type | Dimension (mm) | |||
| L | t | s | ɑ | |
| D3 | 3.5 | 8.0 | 3.0 | 14° |
| D4 | 4.5 | 10.0 | 4.0 | 14° |
| D5 | 5.5 | 12.0 | 5.0 | 14° |
| D6 | 6.5 | 14.0 | 6.0 | 14° |
| D8 | 8.6 | 16.0 | 8.0 | 14° |
| D10 | 10.5 | 18.0 | 10.0 | 14° |
| D12 | 12.5 | 20.0 | 12.0 | 14° |
| Item | Tungsten Carbide Brazed Tips Type D |
| Material | 100% virgin tungsten carbide |
| Type | D3, D4, D5, D6, D8, D10, D12 |
| Grade | YG6, YG8, YG6X, YT5, YT14, YT15, YW1, YW2, , K10, K20, K30, P10, P20, P30, M10, M20, etc. |
| Surface | Sintered, blank, sandblasting |
| Application | For turning tool, lathe tool |
| MOQ | 10pcs |
| Certificate | ISO, TUV, etc. |
| Delivery time | about 15-25 days |
| Advantage | Positive rake angle provides a sharp edge for making continuous cuts |
Applications of Tungsten Carbide Brazed Tips
Cemented carbide brazed tips are widely used on brazed turning tools, threading tools, turning tools, etc. We can offer full types and various grades with different application such as for finishing, semi-finishing and roughing of cast iron, nonferrous metal, steel, stainless steel, etc.
