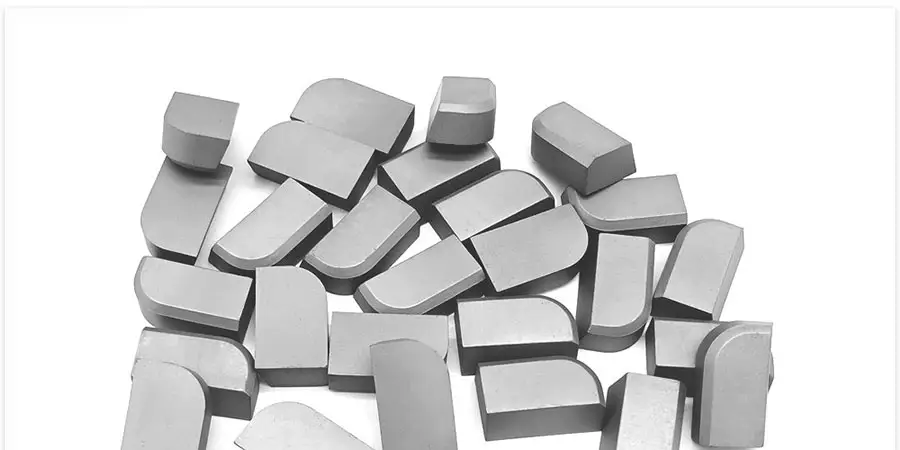

Tungsten Carbide Brazed Tips Type B
Tungsten Carbide Brazed Tips Type A
| Type | Dimension (mm) | |||
| L | t | s | r | |
| B5 | 5.0 | 3.0 | 2.0 | 2.0 |
| B6 | 6.0 | 4.0 | 2.5 | 2.5 |
| B8 | 8.0 | 5.0 | 3.0 | 3.0 |
| B10 | 10.0 | 6.0 | 4.0 | 4.0 |
| B12 | 12.0 | 8.0 | 5.0 | 5.0 |
| B16 | 16.0 | 10.0 | 6.0 | 6.0 |
| B20 | 20.0 | 12.0 | 7.0 | 7.0 |
| B25 | 25.0 | 14.0 | 8.0 | 8.0 |
| B32 | 32.0 | 18.0 | 10.0 | 10.0 |
| B40 | 40.0 | 22.0 | 12.0 | 12.0 |
| B50 | 50.0 | 25.0 | 14.0 | 14.0 |
| Item | Tungsten Carbide Brazed Tips Type B |
| Material | Tungsten carbide |
| Type | B5, B6, B8, B10, B12, B20, B25, B32, B40, B50 |
| Grade | K10,, K30, P20, P10, P20, P30, M10, M20, etc. |
| Surface | Sintered, unground, sandblasting |
| Application | For turning tool, lathe tool |
| MOQ | 10pc |
| Certificate | ISO, TUV, etc. |
| Delivery time | about 20-30 days |
| Advantage | Positive rake angle provides a sharp edge for making continuous cuts |
Applications of Tungsten Carbide Brazed Tips
Carbide brazed tips type B are mainly used for making periphery turning tools and end turning tools.
