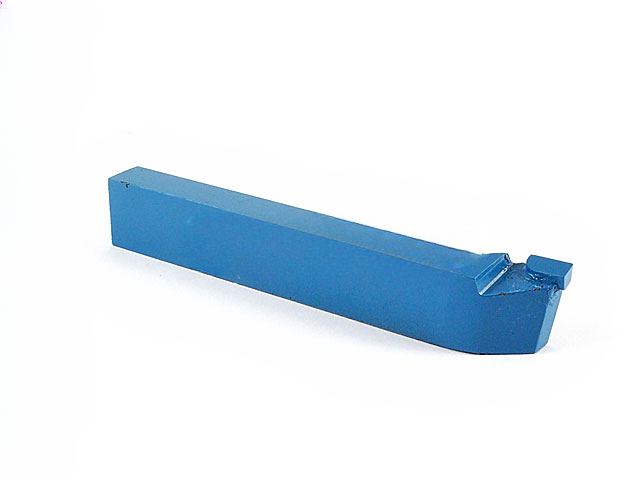

Side Bent Turning Tool Bit ISO3 DIN4978 R/L
SIDE BENT TURNING TOOL BIT ISO3 DIN4978 R/L
Properties and application:
- Used for machining single units and small series
- With ground carbide blades
Specifications:
 |
| Tool bit size | Dimensions | ||||
|---|---|---|---|---|---|
| h [mm] |
b [mm] |
L [mm] |
n [mm] |
r [mm] |
|
| 1610 |
16 | 10 | 110 | 5 | 0,2 |
| 2012 | 20 | 12 | 125 | 6 | 0,4 |
| 2516 | 25 | 16 | 140 | 8 | 0,4 |
| 3220 | 32 | 20 | 170 | 10 | 0,8 |
| 4025 | 40 | 25 | 200 | 12 | 0,8 |
| 5032 | 50 | 32 | 240 | 14 | 1,2 |
