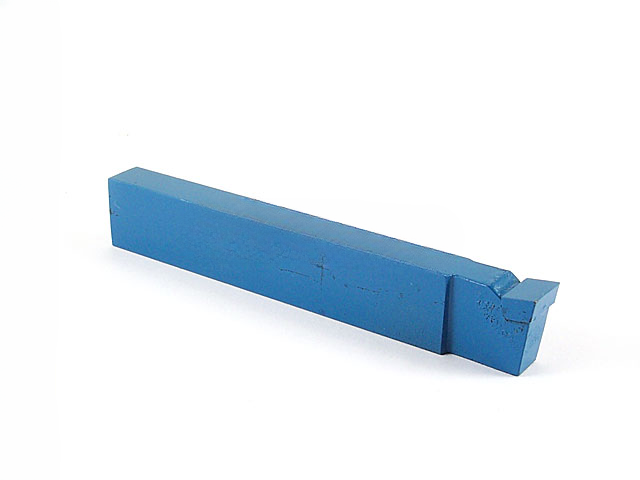

Wide Face Turning Tool Bit ISO4 DIN4976
WIDE FACE TURNING TOOL BIT ISO4 DIN4976
Properties and application:
- Used for machining single units and small series
- With ground carbide blades
Specifications:
 |
| Tool bit size | Dimensions | ||||
|---|---|---|---|---|---|
| h [mm] |
b=b1 [mm] |
L [mm] |
l [mm] |
r [mm] |
|
| 2012 |
20 | 12 | 125 | 20 | 0,4 |
| 2516 |
25 | 16 | 140 | 25 | 0,4 |
| 3220 |
32 | 20 | 170 | 32 | 0,4 |
| 4025 |
40 | 25 | 200 | 40 | 0,4 |
| 5032 |
50 | 32 | 240 | 50 | 0,4 |
