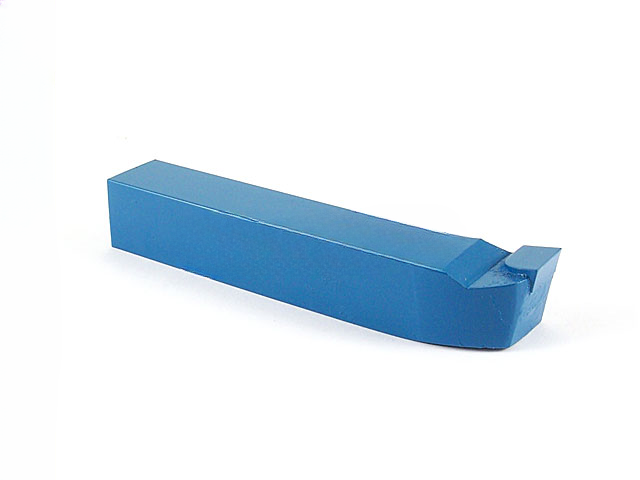

Offset Face Turning Tool Bit ISO5 DIN4977 R/L
OFFSET FACE TURNING TOOL BIT ISO5 DIN4977 R/L
Properties and application:
- Used for machining single units and small series
- With ground carbide blades
Specifications:
 |
| Tool bit size | Dimensions | ||||
|---|---|---|---|---|---|
| h [mm] |
b [mm] |
L [mm] |
n [mm] |
r [mm] |
|
| 1616 | 16 | 16 | 110 | 8 | 0,8 |
| 2020 | 20 | 20 | 125 | 10 | 0,8 |
| 2525 | 25 | 25 | 140 | 12 | 0,8 |
| 3232 | 32 | 32 | 170 | 16 | 1,2 |
| 4040 | 40 | 40 | 200 | 20 | 1,2 |
| 5050 | 50 | 50 | 240 | 25 | 1,6 |
