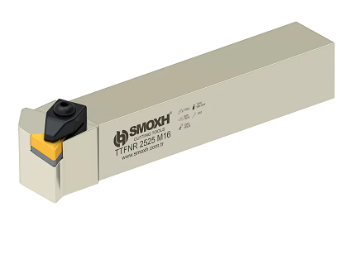

External Turning Toolholders TTFN R/L
External Turning Toolholders TTFN R/L
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
TTFN R/L (90) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
STEP
SM44524 |
STEP
SM44531 |
TTFN R/L 2020 K16 |
20 |
20 |
125 |
26 |
TNM.1604.. |
|
STEP
SM44548 |
STEP
SM44555 |
TTFN R/L 2525 M16 |
25 |
25 |
150 |
32 |
|
|
STEP
SM49154 |
STEP
SM49161 |
TTFN R/L 3232 P16 |
32 |
32 |
170 |
38 |
|
|
STEP
SM44562 |
STEP
SM44579 |
TTFN R/L 2525 M22 |
25 |
25 |
150 |
32 |
TNM.2204.. |
|
STEP
SM44586 |
STEP
SM44593 |
TTFN R/L 3232 P22 |
32 |
32 |
170 |
38 |
|
|
STEP
SM49178 |
STEP
SM49185 |
TTFN R/L 4040 S22 |
40 |
40 |
250 |
47 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
|||||
|
|
Clamp |
Screw |
Shim |
Shim Screw |
Stamp |
Allen Key |
|
|
|
|
|
|
|
|
||
|
2020 – 3232 |
TNM.1604.. |
TSK2-9102 |
TSBV M5x24-9202 |
BAX TN16-9610 |
TSAV M4x10x7-9413 |
– |
SAK-AA3-9902 |
|
2525 – 4040 |
TNM.2204.. |
TSK1-9101 |
TSBV M6x30-9205 |
BAX TN22-9611 |
TSAV M4x10-9403 |
TSP 6.5×12-9705 |
|
