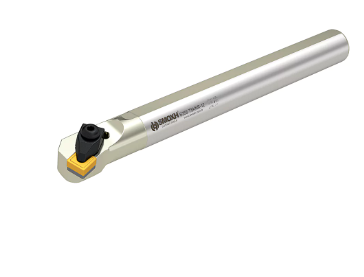

External Turning Toolholders TSKN R/L
External Turning Toolholders TSKN R/L
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
TSKN R/L (75) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
STEP
SM00636 |
STEP
SM00643 |
TSKN R/L 2020 K12 |
20 |
20 |
125 |
26 |
SNM.1204.. |
|
STEP
SM00650 |
STEP
SM00667 |
TSKN R/L 2525 M12 |
25 |
25 |
150 |
32 |
|
|
STEP
SM00674 |
STEP
SM00681 |
TSKN R/L 3232 P12 |
32 |
32 |
170 |
38 |
|
|
STEP
SM00803 |
STEP
SM00810 |
TSKN R/L 2525 M15 |
25 |
25 |
150 |
32 |
SNM.1506.. |
|
STEP
SM00780 |
STEP
SM00698 |
TSKN R/L 3232 P15 |
32 |
32 |
170 |
38 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
|||||
|
|
Clamp |
Screw |
Shim |
Shim Screw |
Stamp |
Allen Key |
|
|
|
|
|
|
|
|
||
|
2020 – 3232 |
SNM.1204.. |
TSK1-9101 |
TSBV M6x30-9205 |
BAX SN12-9608 |
TSAV M4x10-9403 |
TSP 6.5×12-9705 |
SAK-AA3-9902 |
|
2525 – 4040 |
SNM.1506.. |
TSK3-9103 |
TSBV M6x30x7-9206 |
BAX SN15-9609 |
TSAV M6x16x9-9404 |
– |
|
|
3232 – 4040 |
SNM.1906.. |
TSK4-9104 |
TSBV M8x30-9207 |
BAX SN19-9629 |
TSAV M6x16x11-9406 |
SAK-AA4-9903 |
|
