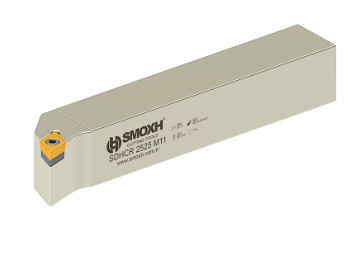

External Turning Toolholders SDHC R/L
External Turning Toolholders SDHC R/L
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
SDHC R/L (107.5) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
STEP
SM02708 |
STEP
SM02715 |
SDHC R/L 0808 E07 |
8 |
8 |
70 |
10 |
DCM. 0702.. |
|
STEP
SM02654 |
STEP
SM02661 |
SDHC R/L 1010 E07 |
10 |
10 |
70 |
12 |
|
|
STEP
SM02722 |
STEP
SM02739 |
SDHC R/L 1212 F07 |
12 |
12 |
80 |
15 |
|
|
STEP
SM02746 |
STEP
SM02753 |
SDHC R/L 1616 H07 |
16 |
16 |
100 |
20 |
|
|
STEP
SM02906 |
STEP
SM02913 |
SDHC R/L 1616 H11 |
16 |
16 |
100 |
20 |
DCM. 11T3.. |
|
STEP
SM02814 |
STEP
SM02876 |
SDHC R/L 2020 K11 |
20 |
20 |
125 |
25 |
|
|
STEP
SM02920 |
STEP
SM02937 |
SDHC R/L 2525 M11 |
25 |
25 |
150 |
29 |
|
|
STEP
SM02944 |
STEP
SM02951 |
SDHC R/L 3232 P11 |
32 |
32 |
170 |
38 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
|||
|
|
Clamp Screw |
Shim |
Shim Screw |
Torx Key |
|
|
|
|
|
|
||
|
0808 – 1616 |
DCM. 0702.. |
SSV M2.5×6-9505 |
– |
– |
STK-T08-9908 |
|
1212 – 1616 |
DCM. 11T3.. |
SSV M3.5×10-9511 |
BAX DC11-9613 |
SBV5 M5x0.5 A3.5×9-9408 |
STK-T15-9910 |
|
2020 – 3232 |
SSV M3.5×14-9512 |
SBV M5.05 A3.5×11-9407 |
|||
|
2525-JT |
SSV M3.5×10-9511 |
SBV5 M5x0.5 A3.5×9-9408 |
|||
