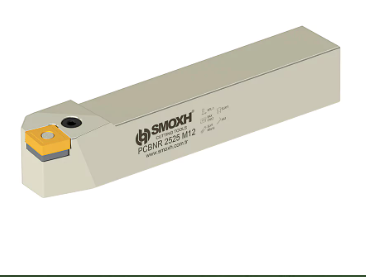

External Turning Toolholders PCBN R/L
External Turning Toolholders PCBN R/L
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
PCBN R/L (75) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
STEP
SM34204 |
STEP
SM34198 |
PCBN R/L 2020 K12 |
20 |
20 |
125 |
17.5 |
CNM.1204.. |
|
STEP
SM22447 |
STEP
SM22454 |
PCBN R/L 2525 M12 |
25 |
25 |
150 |
22.5 |
|
|
STEP
SM25868 |
STEP
SM25851 |
PCBN R/L 3232 P12 |
32 |
32 |
170 |
28.5 |
|
|
STEP
SM34211 |
STEP
SM34228 |
PCBN R/L 2525 M16 |
25 |
25 |
150 |
22.5 |
CNM.1606.. |
|
STEP
SM34235 |
STEP
SM34242 |
PCBN R/L 3232 P16 |
32 |
32 |
170 |
28.5 |
|
|
STEP
SM34266 |
STEP
SM34259 |
PCBN R/L 3232 P19 |
32 |
32 |
170 |
28 |
CNM.1906.. |
|
STEP
SM34273 |
STEP
SM34280 |
PCBN R/L 4040 S19 |
40 |
40 |
250 |
36 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
||||
|
|
Lever |
Lever Screw |
Shim |
Shim Spring |
Allen Key |
|
|
|
|
|
|
|
||
|
2020 – 3232 |
CNM.1204.. |
SPL1-9120 |
SLV1 M8x20-9224 |
BAX CN12-9603 |
SLAY1-9701 |
SAK-AA3-9902 |
|
2525 – 3232 |
CNM.1606.. |
SPL2-9121 |
SLV2 M8x24-9225 |
BAX CN16-9604 |
SLAY2-9702 |
|
|
3232 – 4040 |
CNM.1906.. |
SPL3-9122 |
SLV3 M10x29-9226 |
BAX CN19-9605 |
SLAY3-9703 |
SAK-AA4-9903 |
