Thruster Drum Brakes Stromag SAB

• SAB – 6” – ELDRO ED 23/5
• SAB – 6” – ELDRO ED 23/5
• SAB – 6” – ELDRO ED 30/5
• SAB – 10” – ELDRO ED 23/5
• SAB – 10” – ELDRO ED 30/5
• SAB – 10” – ELDRO ED 50/6
• SAB – 12” – ELDRO ED 30/5
• SAB – 12” – ELDRO ED 50/6
• SAB – 12” – ELDRO ED 80/6
• SAB – 13” – ELDRO ED 30/5
• SAB – 13” – ELDRO ED 50/6
• SAB – 13” – ELDRO ED 80/6
• SAB – 15” – ELDRO ED 50/6
• SAB – 15” – ELDRO ED 80/6
• SAB – 15” – ELDRO ED 121/6
• SAB – 16” – ELDRO ED 50/6
• SAB – 16” – ELDRO ED 80/6
• SAB – 16” – ELDRO ED 121/6
• SAB – 19” – ELDRO ED 80/6
• SAB – 19” – ELDRO ED 121/6
• SAB – 19” – ELDRO ED 201/6
• SAB – 23” – ELDRO ED 121/6
• SAB – 23” – ELDRO ED 201/6
• SAB – 23” – ELDRO ED 301/6
• SAB – 23” – ELDRO ED 301/12
• SAB – 30” – ELDRO ED 121/6
• SAB – 30” – ELDRO ED 201/6
• SAB – 30” – ELDRO ED 301/6
• SAB – 30” – ELDRO ED 301/12

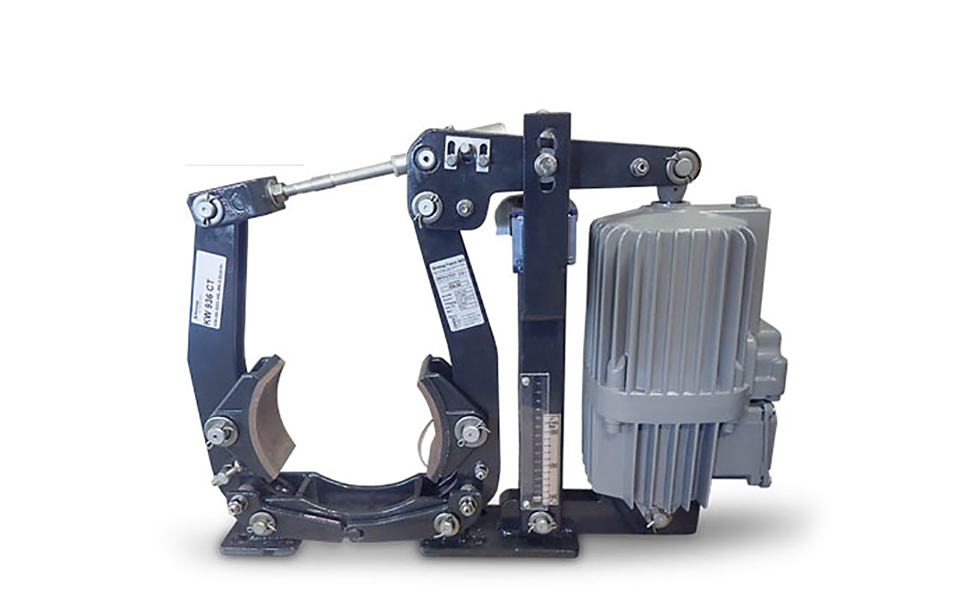

Service brakes designed for heavy-duty steel mill operations with Electrohydraulic Thruster

Protected against adverse environmental effects in their respective applications, Series SAB brakes have precision-tuned safety functions.
In hoisting and traveling drives, these spring-applied brakes keep heavy mill loads safely in place and retain the rotary drives in their required position.

The brake permits easy adjustment of the braking torque with accurate scale control. SAB brakes feature asbestos-free lining pads and offer a range of options on-demand.

Mill Applications

• Cranes & Hoists
• Ladle Hood Winches
• Coilers
• Roughing & Temper Mills
• Annealing & Galvanizing Lines
• Levelers & Slitters
• Accumulators
• Cold Forming

Features

• Assembled and stocked in U.S.A.
• Automatic wear compensation
• Brake shoe auto-aligning
• Maintenance-free, self-lubricated bushes at main hinges & sliding joints
• Galvanized steel spindles and hinges
• Brakes are A ISE N.11-63.120 compliant
• Thrusters are DIN 15430 compliant

Benefits

• Brakes meet local content requirements
• Local manufacturing provides shorter lead time
• Ease of configuration reduces engineering time and cost
• Brake design reduces maintenance time and cost
• Strong application support ensures project success
