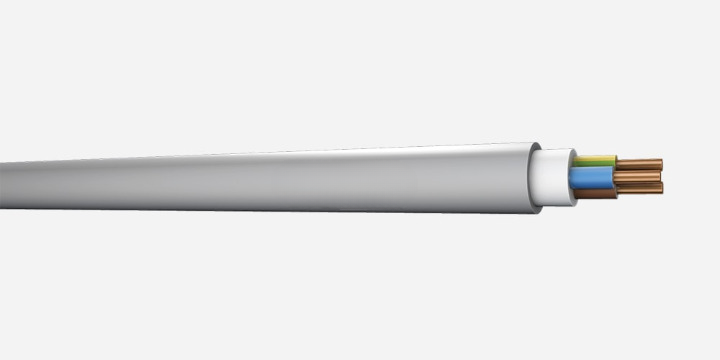

NVV, 05VV-U, 05VV-R, NYM
300/500 V PVC INSULATED MULTI-CORE CABLES
• NVV • 05VV-U • 05VV-R (TSE) • NYM(VDE)Cu/PVC /PVC (BS)
| Code | NVV, 05VV-U , 05VV-R (TSE), NYM(VDE), Cu/PVC/PVC (BS) |
| Standarts | TS HD 21.4 S2, VDE 0281, BS 6004, IEC 60227 |
| Construction | Copper conductor, PVC insulation, PVC filler, PVC outer sheath. |
| Application | Fixed wiring in dry and damp premises, in conduits, on or under plaster and on insulators over plaster, switching and distribution panels. |
| Technical Datas | Max. Operating temperature 70 °C Max. Short circuit temperature 160 °C Min. Bending radius 12*D D:Cable outer diameter (mm) |
- Product Description
| Dimensions and Weights |
Electrical Information
|
||||
|
Nominal
cross-section |
Overall Diameter |
Net Weight | Standart delivery lenght |
Conductor DC (maks.) resistance at 20 °C |
Current carrying capacity in |
|
mm²
|
mm
|
kg/km
|
m |
ohm/km
|
Air (A) |
|
2×1.5 re
|
8,80
|
105
|
100
|
12,1
|
22
|
|
2×2.5 re
|
10,0
|
145
|
100
|
7,41
|
30
|
|
2×4 re
|
11,0
|
195
|
100
|
4,61
|
40
|
|
2×6 re
|
12,0
|
250
|
100
|
3,08
|
50
|
|
2×10 rm
|
16,0
|
420
|
100
|
1,83
|
70
|
|
2×16 rm
|
18,0
|
590
|
1000
|
1,15
|
93
|
|
2×25 rm
|
21,0
|
860
|
1000
|
0,727
|
108
|
|
2×35 rm
|
23,0
|
1150
|
1000
|
0,524
|
135
|
|
3×1.5 re
|
9,0
|
125
|
100
|
12,1
|
22
|
|
3×2.5 re
|
10,5
|
175
|
100
|
7,41
|
30
|
|
3×4 re
|
11,5
|
240
|
100
|
4,61
|
40
|
|
3×6 re
|
13,0
|
325
|
100
|
3,08
|
50
|
|
3×10 rm
|
16,5
|
520
|
100
|
1,83
|
70
|
|
3×16 rm
|
19,0
|
740
|
1000
|
1,15
|
93
|
|
3×25 rm
|
22,0
|
1100
|
1000
|
0,727
|
108
|
|
3×35 rm
|
25,0
|
1460
|
1000
|
0,524
|
135
|
|
4×1.5 re
|
10,0
|
145
|
100
|
12,1
|
18
|
|
4×2.5 re
|
11,5
|
215
|
100
|
7,41
|
24
|
|
4×4 re
|
13,0
|
300
|
100
|
4,61
|
32
|
|
4×6 re
|
14,0
|
410
|
100
|
3,08
|
42
|
|
4×10 rm
|
18,5
|
645
|
100
|
1,83
|
60
|
|
4×16 rm
|
21,0
|
930
|
1000
|
1,15
|
80
|
|
4×25 rm
|
24,5
|
1400
|
1000
|
0,727
|
100
|
|
4×35 rm
|
27,5
|
1900
|
1000
|
0,524
|
124
|
|
5×1.5 re
|
11,0
|
180
|
1000
|
12,1
|
18
|
|
5×2.5 re
|
12,0
|
250
|
1000
|
7,41
|
24
|
|
5×4 re
|
14,0
|
360
|
1000
|
4,61
|
32
|
|
5×6 re
|
16,0
|
480
|
1000
|
3,08
|
42
|
|
5×10 rm
|
20,0
|
800
|
1000
|
1,83
|
60
|
|
5×16 rm
|
23,0
|
1150
|
1000
|
1,15
|
80
|
|
5×25 rm
|
27,5
|
1700
|
1000
|
0,727
|
100
|
|
5×35 rm
|
31,0
|
2300
|
1000
|
0,524
|
124
|
re : Single-wire conductor, rm : Stranded conductor
