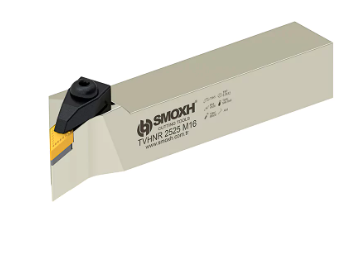

External Turning Toolholders TVHN R/L
External Turning Toolholders TVHN R/L
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
||||
|
Direction |
TVHN R/L (107.5) |
h=H |
b |
L |
f |
|
|
|
Right |
Left |
||||||
|
STEP
SM23796 |
STEP
SM23802 |
TVHN R/L 2020 K16 |
20 |
20 |
125 |
26 |
VNM.1604.. |
|
STEP
SM23819 |
STEP
SM23826 |
TVHN R/L 2525 M16 |
25 |
25 |
150 |
32 |
|
|
STEP
SM27114 |
STEP
SM27121 |
TVHN R/L 3232 P16 |
32 |
32 |
170 |
47 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
|||||
|
|
Clamp |
Screw |
Shim |
Shim Screw |
Stamp |
Allen Key |
|
|
|
|
|
|
|
|
||
|
2020 |
VNM.1604.. |
TSK5-9105 |
TSBV M6x30-9205 |
BAX VN16-9612 |
TSAV M4x10x6 9402 |
TSP 6.5×12-9705 |
SAK-AA3-9902 |
