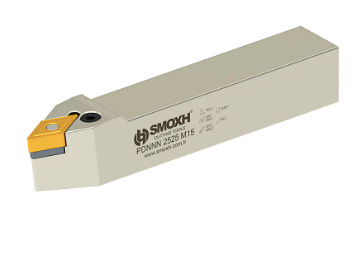

External Turning Toolholders PDNNN
External Turning Toolholders PDNNN
|
Ordering Code |
Item Designation |
Dimensions (mm) |
Master Insert* |
|||
|
Direction |
PDNNN (62.5) |
h=H |
b |
L |
f |
|
|
STEP Neutral |
||||||
|
STEP SM25943 |
PDNNN 2020 K15 |
20 |
20 |
125 |
10 |
DNM.1506.. |
|
STEP SM22409 |
PDNNN 2525 M15 |
25 |
25 |
150 |
12.5 |
|
|
STEP SM25936 |
PDNNN 3232 P15 |
32 |
32 |
170 |
16 |
|
|
STEP SM34297 |
PDNNN 4040 S15 |
40 |
40 |
250 |
20 |
|
|
Size Designation |
Master Insert* |
Spare Parts |
||||
|
|
Lever |
Lever Screw |
Shim |
Shim Spring |
Allen Key |
|
|
|
|
|
|
|
||
|
2020 – 4040 |
DNM.1506.. |
SPL4 9123 |
SLV4 M8x21 9229 |
BAX DN15-9602 |
SLAY1 9701 |
SAK-AA3-9902 |
