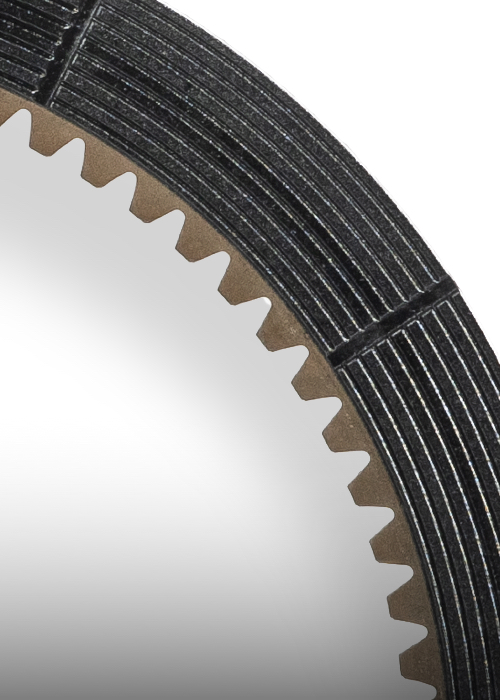

Elastomer Transmission Plates

Elastomer Transmission Plates

Elastomer is a sophisticated rubber friction material and was developed for powershift transmissions, swing and travel brakes. Due to its elasticity, it’s extremely resilient and adapts well to mating surfaces – increasing the energy and power consumption capability.

•  Good thermal stability
•  Stable coefficient of friction
•  Excellent engagement characteristics
•  Good wear resistance

Typical Applications

• Swing & travel brakes
• Powershift transmissions

Friction Coefficient (wet)

• Static: 0.10 – 0.15
• Dynamic: 0.09 – 0.12

Dimensions

• Friction thickness:1.2 mm (0.047”) max
  0.60 mm (0.024”) min
• Friction diameter: 750 mm (29”) max
