Continuous Screw Flights

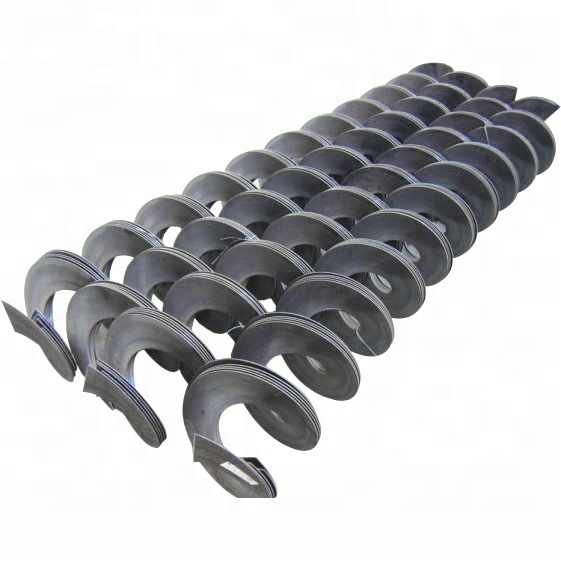

CONTINUOUS SCREW FLIGHTS
The continuous metal flights are produced from coils or flat carbon steel and stainless steel bars lengths of 3 meters.
Production capacity covers a wide range of measures.
Can be made special flights with different pitch – long or short – compared to most common sizes. Standard sizes are available from stock.
Design we can build screw shaft with flights finished and ready for assembly.
|
Outer
d. ø mm |
Pitch
p. ø mm |
Hole
d. ø mm |
Thickness
SI / SE |
Thickness
SI / SE |
Thickness
SI / SE |
| 50 50 50 |
50 50 50 |
14 17 22 |
3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 50 50 |
|
| 80 80 80 80 |
80 80 80 80 |
17 22 27 34 |
3 / 1,5 3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 4 / 2 |
|
| 100 100 100 |
100 100 100 |
22 27 34 |
3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 |
|
| 120 120 120 |
120 120 120 |
27 34 42 |
3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 |
|
| 125 | 125 | 34 | 3 / 1,5 | 4 / 2 | |
| 130 130 130 |
130 130 130 |
27 34 42 |
3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 |
|
| 140 140 140 |
140 140 140 |
34 42 48 |
3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 |
|
| 150 150 150 150 |
150 150 150 150 |
34 42 48 60 |
3 / 1,5 3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 4 / 2 |
|
| 160 160 |
160 160 |
42 48 |
3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 |
6 / 3 6 / 3 |
| 180 180 180 180 |
180 180 180 180 |
42 48 60 70 |
3 / 1,5 3 / 1,5 3 / 1,5 3 / 1,5 |
4 / 2 4 / 2 4 / 2 4 / 2 |
6 / 3 6 / 3 6 / 3 6 / 3 |
| 200 200 200 |
200 200 200 |
42 48 60 |
4 / 2 4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 6 / 3 |
| 220 220 220 220 |
220 220 220 220 |
48 60 70 90 |
4 / 2 4 / 2 4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 6 / 3 6 / 3 |
| 230 230 |
230 230 |
48 60 |
4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 |
| 250 250 250 |
250 250 250 |
60 70 90 |
4 / 2 4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 6 / 3 |
| 280 280 |
280 280 |
60 70 |
4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 |
| 300 300 300 |
300 300 300 |
70 76 90 |
4 / 2 4 / 2 4 / 2 |
5 / 2,5 5 / 2,5 5 / 2,5 |
6 / 3 6 / 3 6 / 3 |
| 350 | 350 | 90 | 4 / 2 | 5 / 2,5 | 6 / 3 |
| 400 | 400 | 102 | 4 / 2 | 5 / 2,5 | 6 / 3 |
