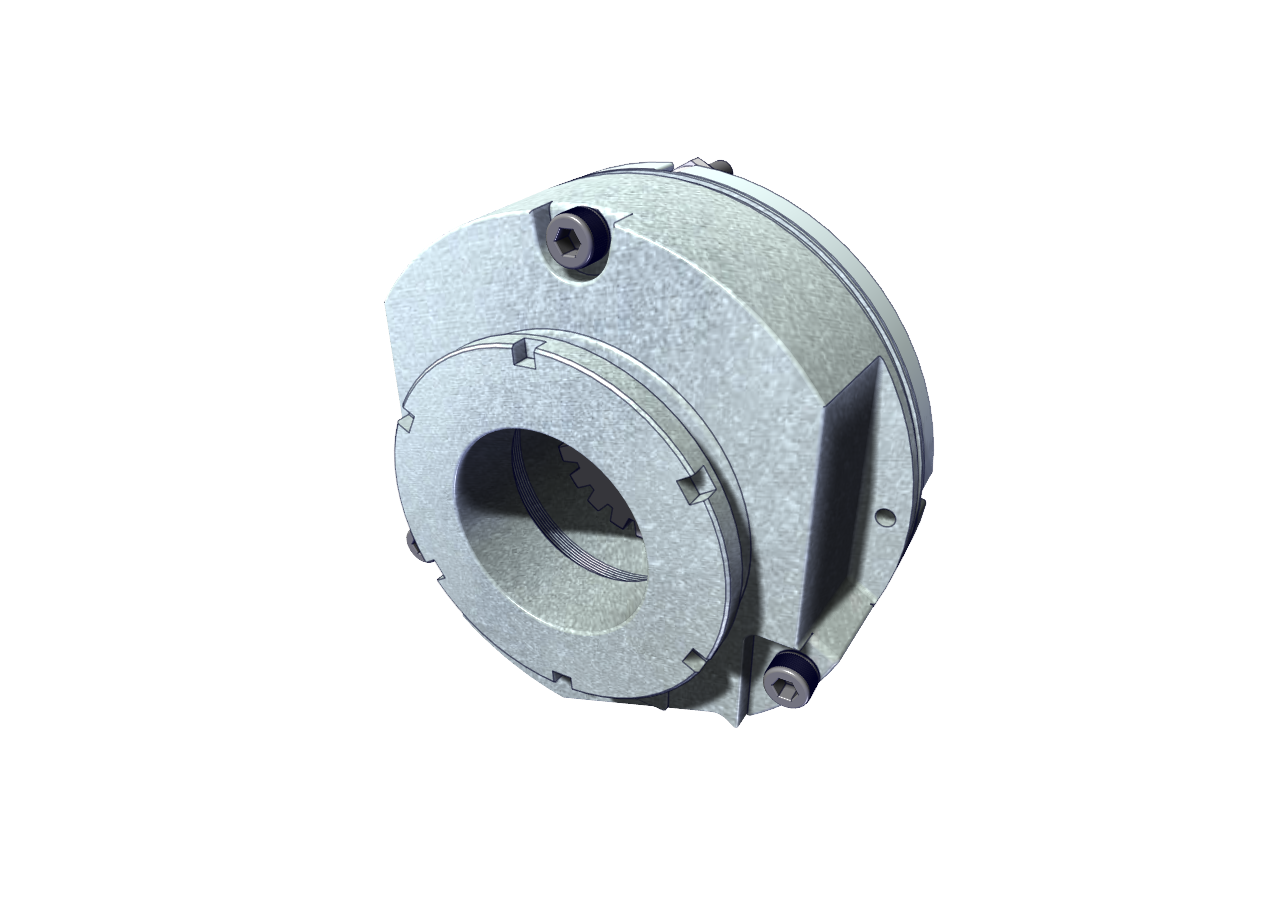

The electro-mechanical spring brake K series is an DC brake. The purpose of the brake is to determine the stopping of the rotational movement of a mechanical shaft. To do this, the user must ensure that the brake meets the requirements of the “Brake selection” section. Only under these conditions can the brake perform its work properly.
The main features of the K series brake are:
– Very sturdy structure;
• Massima silenziosità negli interventi e nel funzionamento (< 70 dBA secondo la direttiva 98/37/CEE);
– Economical thanks to the simple assembly of the brake unit.
– Good heat dissipation. This is done via the fan and/or motor cover, which must necessarily be made of cast iron or steel as it also acts as a braking surface;
– The coil of the electromagnet is completely cemented with epoxy resin, unless otherwise specified, and the mechanical parts are protected by galvanic treatment of galvanizing;
– A manual release lever is available on request;
– cCSAus n° 70043342

The on and off times as well as the functionality in insulation class F and functional class S1, with ventilationare only guaranteed with the use of rectifiers manufactured by Temporiti Srl, for all DC brakes listed on this website, and if the nominal voltage remains within the tolerance limits of the coil’s functionality.
