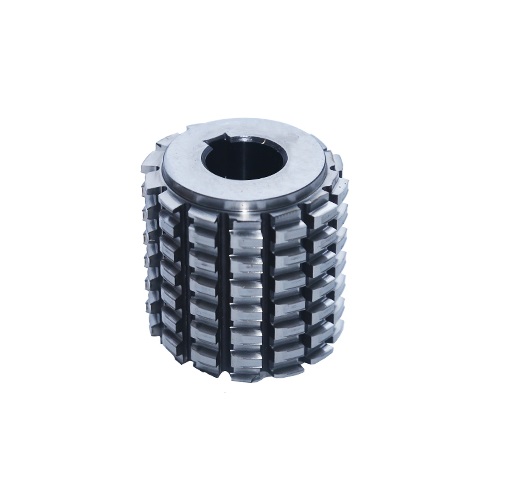

Straight Spline Hob Cutter
We are a Manufacturer and Exporter of Straight Spline Hob Cutters in various countries. Our range undergoes different quality parameters. Straight Spline Hobs are available in multiple forms like non-topping, semi-topping, topping, finishing, pre-shaving, pre-grinding, protuberance, full-fillet, etc. The cutters are used for cut parallel splines and are manufactured in single or multi-start designs with a pressure angles of 20 degrees,30 degrees, 37.5 degrees, and 45 degrees.
Types of Hobs
- – Spline
- – Trapezoidal
- – Involute
We can also provide these spline hob cutters according to our Client’s requirements.
- Material: S390/ASP2052/ASP2030/S290/ASP2060/M35/M42/M2
- Accuracy class: AAA, AA, A & B as per DIN3968
- Standard: DIN 5480, DIN 5482, ANSI B92.1, B92.2, BS3550, GOST-6033
- Supplied with all types of latest PVD Coatings.
| Module | out dia. | Total length | Bore Dia. |
|---|---|---|---|
| 11 | 60 | 60 | 22 |
| 13 | |||
| 16 | |||
| 18 | |||
| 21 | 75 | 75 | 27 |
| 23 | |||
| 26 | |||
| 28 | |||
| 32 | |||
| 36 | |||
| 42 | |||
| 46 | 95 | 95 | 32 |
| 52 | 95 | 95 | 32 |
| 56 | 115 | 115 | 32 |
| 62 | 115 | 115 | 32 |
| 72 | 135 | 175 | 40 |
| 82 | 135 | 175 | 40 |
| 92 | 145 | 190 | 40 |
| 32 | 75 | 75 | 27 |
| 36 | 75 | 75 | 27 |
| 42 | 75 | 75 | 27 |
| 46 | 95 | 90 | 32 |
| 52 | |||
| 62 | |||
| 72 | |||
| 82 | 115 | 115 | |
| 92 | |||
| 102 | |||
| 112 |
