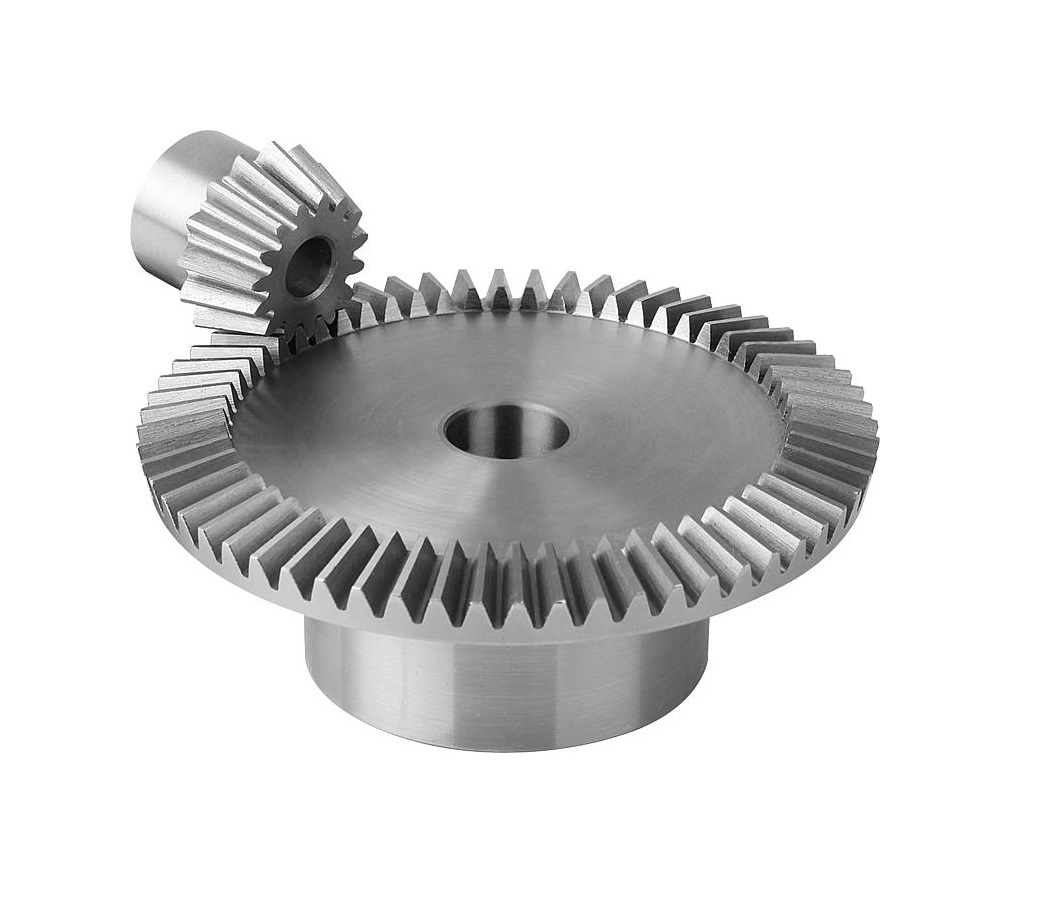

Straight Bevel Gears
Straight Bevel Gears
Please inspect the table below for manufacturing range of straight bevel gears. For more information or questions please contact us.
If you are designing gears from scratch you can consult us. We would be happy to help you!
Please note that straight bevel gear sets with same number of teeth are sometimes called miter gears.
Straight Bevel Gear Manufacturing Specification
| Module | 1 – 22 mm (or equivalent DP) |
| Pressure Angle | 20° * |
| Outer Diameter | max. 750 mm |
| Shaft Angle | 0°<…<180° |
| Material** | Carbon Steels or Alloy Steels
Cast Iron or Cast Steel Aluminum Alloys Plastics (Polyamid, Delrin etc.) |
| Other | Test for contact pattern and lapping are applied where required. |
* It is possible to utilize different pressure angles but 20° is most efficient for general usage. Please consult us on the matter if you are not sure about the choice.
** Materials are certificated and tested against internal and surface cracks where applicable
