Steel Wire Ropes - 6x37M–IWRC
Steel Wire Ropes – 6x37M–IWRC
Steel wire ropes with point contact of the wires
PRODUCT TECHNICAL DATA
Rope diameter: from 8,0 mm to 40,0 mm

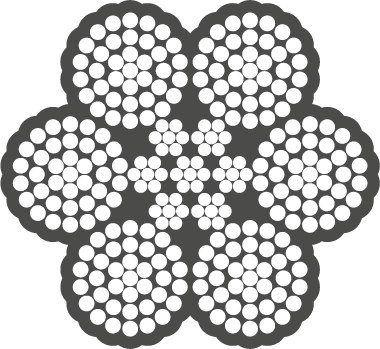

Strand design: 6x37M–IWRC
Strand design: 6x(1-6/12/18)+1x(7×7)
Core: IWRC
Execution standards: DIN 3066 / EN 12385-4
Tensile strength range: 1770 N/mm2 – 1960 N/mm2
Zinc coating: Class B*
| Nominal rope diameter [mm] | Approximate nominal weight [kg/100m] | Minimum breaking load [kN] 1960 N/mm2 |
|---|---|---|
| 8,0 | 24,4 | 43,4 |
| 9,0 | 30,9 | 54,9 |
| 10,0 | 38,1 | 67,8 |
| 11,0 | 46,1 | 82,1 |
| 12,0 | 54,9 | 97,7 |
| 13,0 | 64,4 | 114,6 |
| 14,0 | 74,7 | 132,9 |
| 16,0 | 97,5 | 173,6 |
| 18,0 | 123,4 | 219,7 |
| 20,0 | 152,4 | 271,3 |
| 22,0 | 184,4 | 328,2 |
| 24,0 | 219,5 | 390,6 |
| 25,0 | 238,1 | 423,9 |
| 26,0 | 257,6 | 458,4 |
| 28,0 | 298,7 | 531,7 |
| 30,0 | 342,9 | 610,3 |
| 32,0 | 390,1 | 694,4 |
| 34,0 | 440,4 | 784,0 |
| 36,0 | 493,8 | 878,9 |
| 38,0 | 550,2 | 979,3 |
| 40,0 | 609,6 | 1085,1 |
*on request, we produce ropes from ungalvanized wires (without zinc coating) and from heavily galvanized wires – class A
