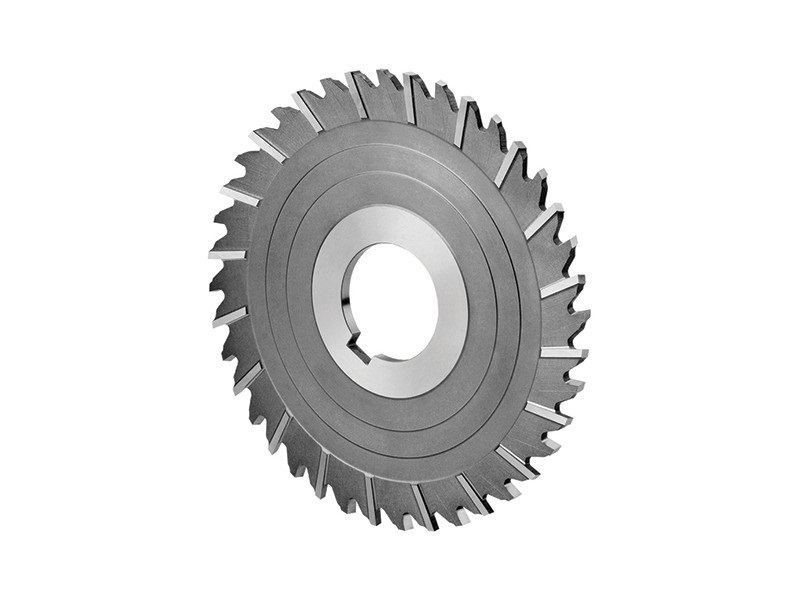

Staggered Tooth Side Milling Cutters
Staggered Tooth Side Milling Cutters
We are a Manufacturer of Staggered Tooth Side Milling Cutters in India, used for milling deep slots or cuts. Staggered tooth design prevents the chip from interfering with the cutting actions and brings them out as they were removed. Each tooth is heavily strengthened when it first makes contact with the work for absorbing the shock of contact and prevent tooth breakage. We provide you with standard and non-standard sizes per your workpiece requirement. The series comes in HSS and HSS-Co Variants.
Our tools are made from high-quality raw materials, ensuring world-class quality and the best performance.
Features:
- With both peripheral and staggered side cutting teeth
- Side and proportioned to afford a good cutting range and ample rigidity.
- Well suited for use in a variety of ferrous and non-ferrous materials.
We provide all material and size ranges based on the customer’s specific drawings and sizes. The Cutters are exported to various countries worldwide.
- Materials: M2, M35, M42, ASP 2030, ASP2062 & ASP 2052
- Diameter: 50- 160mm
- Length: 25-125mm
- Cutting Diameter Tolerance (industry standard): +-.015
- Width Tolerance (industry standard) : +.000 -.0005
- Hardness: 58 to 60 HRC
- Finish : Bright and Black Finish
- Suitable for used on both ferrous and non-ferrous materials.
- Usage /Applications: milling deep slots, grooves and other operations, used for heavy duty side cutting and straddle milling operations.
- Tooth pattern: Peripheral and Staggered side cutting teeth
| Diameter | Bore | Length | No. of Teeth | |
|---|---|---|---|---|
| Coarse | Fine | |||
| 50 | 22 | 25 | 6 | 12 |
| 50 | 22 | 40 | 6 | 12 |
| 50 | 22 | 63 | 6 | 12 |
| 50 | 22 | 80 | 6 | 12 |
| 63 | 27 | 32 | 8 | 14 |
| 63 | 27 | 50 | 8 | 14 |
| 63 | 27 | 70 | 8 | 14 |
| 63 | 27 | 90 | 8 | 14 |
| 63 | 27 | 100 | 8 | 14 |
| 80 | 32 | 36 | 10 | 16 |
| 80 | 32 | 63 | 10 | 16 |
| 80 | 32 | 80 | 10 | 16 |
| 80 | 32 | 90 | 10 | 16 |
| 80 | 32 | 100 | 10 | 16 |
| 100 | 40 | 70 | 12 | 18 |
| 100 | 40 | 125 | 12 | 18 |
| 125 | 50 | 80 | 12 | 18 |
| 125 | 50 | 125 | 12 | 18 |
| 160 | 60 | 125 | 12 | 18 |
