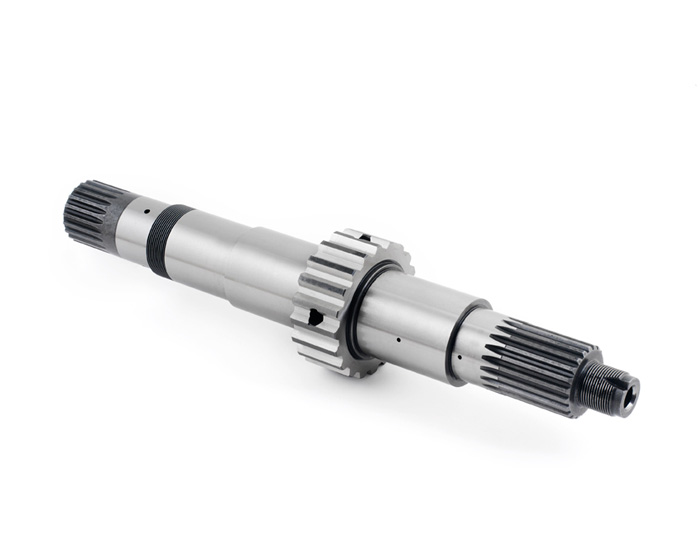

Splined Shafts
Splined Shafts
Please inspect the table below for manufacturing range of shafts with splines. For more information or questions please contact us.
If you are designing shafts (and/or power transmision systems) from scratch you can consult us. We would be happy to help you!
Shafts (With Splines) Manufacturing Specification
| Type* | Keys & Keyways: Acc. to ISO 3117, ISO 3912
Splines: Acc. to ISO 4156, ISO 14 |
| Diameter | Please contact us.**. |
| Length | Please contact us.**. |
| Grinding | Diameter: Please contact us.**. Length: Please contact us.**. |
| Material*** | Carbon Steels or Alloy Steels
Cast Iron or Cast Steel Aluminum Alloys Plastics (Polyamid, Delrin etc.) |
* Custom made keys & keyways and splines are possible.
** Depends on overall design.
*** Materials are certificated and tested against internal and surface cracks where applicable
