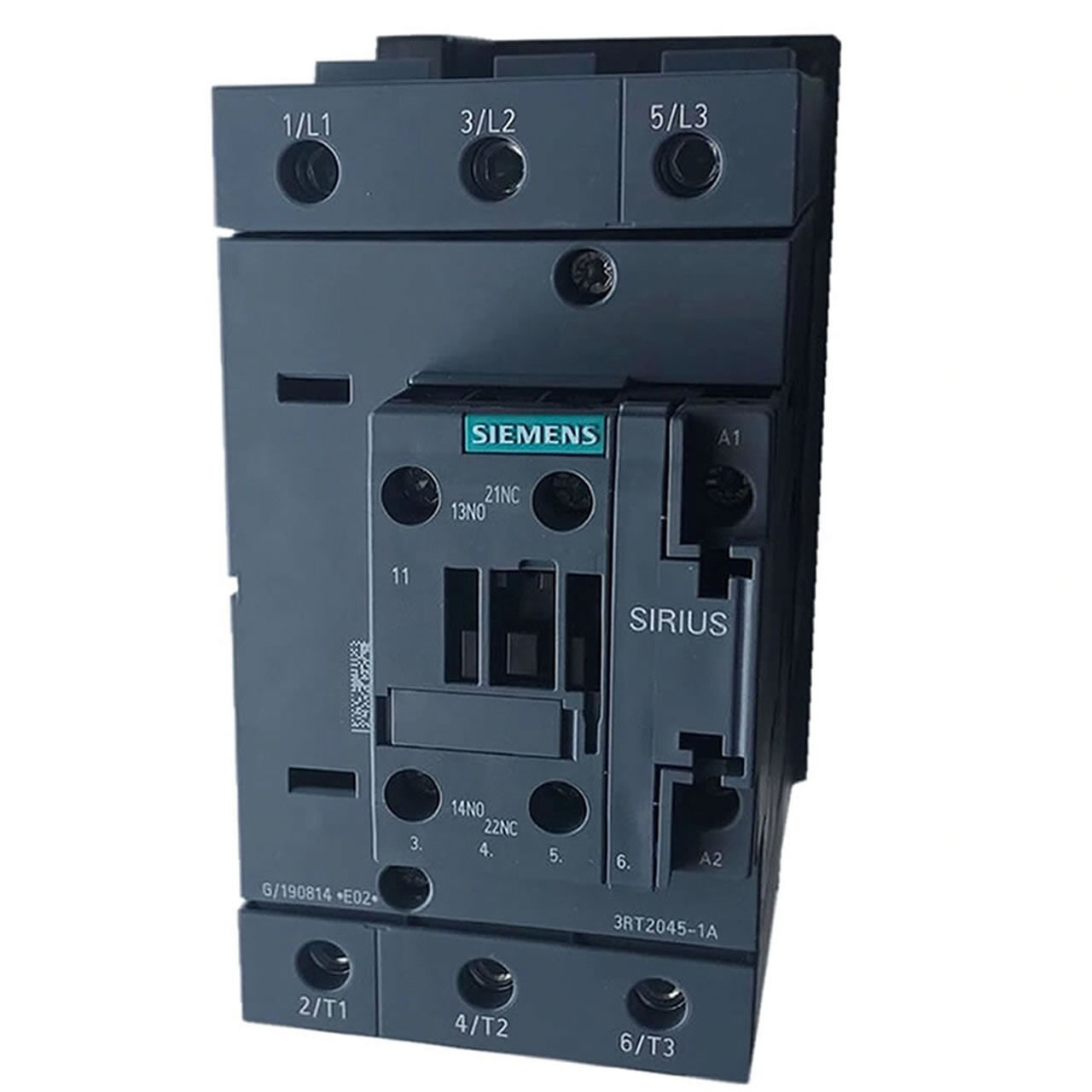

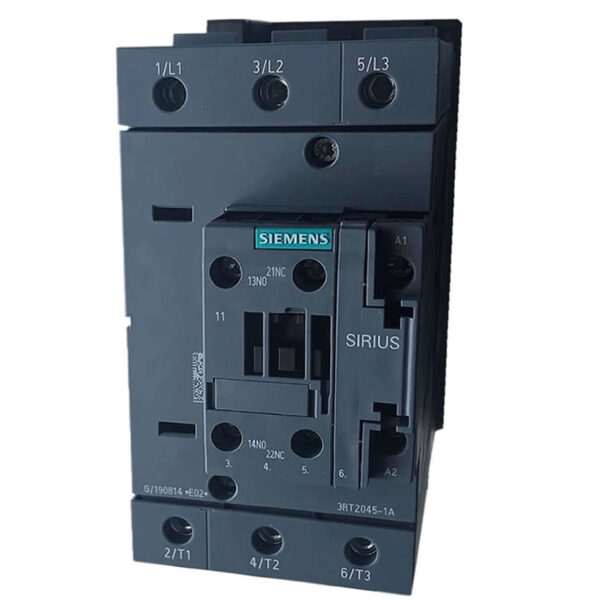

SIEMENS SIRIUS 3RT2045 - 3RT2047 Contactors

SIEMENS SIRIUS 3RT2045, 3RT2046, 3RT2047 Contactors

iemens Sirius motor starter contactors have high contact reliability, a narrow design, long life time, and the ability to operate under extreme conditions. This flexibility ensures that Sirius 3RT Contactors are suited for almost any application. A large array of easily installed, standard accessories may be used to customize the contactors different applications.

3RT204 AC CONTACTORS, FRAME SIZE S3

Photo	Amp Ratings		Three Phase HP Ratings		Catalog No.
	AC3	AC1	230V	460V	Screw Terminals	Spring Loaded Terminals
3RT2045-1AK60	80	125	30	60	3RT2045-1A..0	3RT2045-2A..0
					24V   3RT2045-1AC20	3RT2045-2AC20
					120V  3RT2045-1AK60	3RT2045-2AK60
					240V   3RT2045-1AP60	3RT2045-2AP60
					3RT2046-1A..0	3RT2046-2A..0
	95	130	30	75	24V   3RT2046-1AC20	3RT2046-2AC20
					120V  3RT2046-1AK60	3RT2046-2AK60
					240V  3RT2046-1AP60	3RT2046-2AP60
	110	130	40	75	3RT2047-1A..0	3RT2047-2A..0
					24V   3RT2047-1AC20	3RT2047-2AC20
					120V  3RT2047-1AK60	3RT2047-2AK60
					240V   3RT2047-1AP60	3RT2047-2AP60

3RT204 DC CONTACTORS, FRAME SIZE S3
