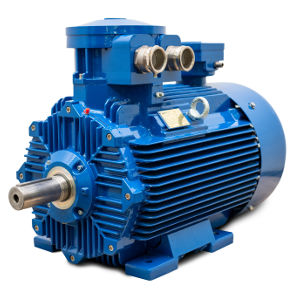

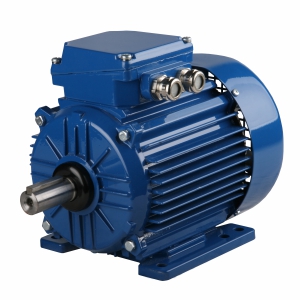

SIE series Three-phase IE2 Motors with squirrel-cage rotor

2SIE series | Three-phase “IE2 High Efficiency” motors with squirrel-cage rotor

One speed general purpose motors with High Efficiency IE2 according to IEC60034-30-1 standard and Commission Regulation (CE) No 640/2009, 4/2014 requirements.

CATALOGUE VERSION

Efficiency class	IE2
Operating duty	S1
Rated voltage	400V
Frequency	50Hz
Synchronous speed	3000, 1500 or 1000rpm
Insulation class	F
Degree of protection	IP55
Ambient temperature	up to +40°C
Mounting arrangement	IM1001 (IMB3 – on feet)

OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST MOTORS SOLELY FOR FREQUENCY CONVERTER SUPPLY

Symbol	Frame size	Number of poles	Rated output [kW]	Rated output [HP]	Synchronous speed [rpm]	Rated torque [Nm]


2SIE56-2B	56	2	0.12	0.17	3000	0.41
2SIE63-2A	63	2	0.18	0.25	3000	0.62
2SIE63-2B	63	2	0.25	0.33	3000	0.85
2SIE63-4A	63	4	0.12	0.17	1500	0.83
2SIE63-4B	63	4	0.18	0.25	1500	1.25
2SIE63-6B	63	6	0.12	0.17	1000	1.25
2SIE71-2A	71	2	0.37	0.50	3000	1.24
2SIE71-2B	71	2	0.55	0.75	3000	1.86
2SIE71-4A	71	4	0.25	0.33	1500	1.72
2SIE71-4B	71	4	0.37	0.55	1500	2.52
2SIE71-6A	71	6	0.18	0.25	1000	1.91
2SIE71-6B	71	6	0.25	0.33	1000	2.71
2SIE71-8B	71	8	0.12	0.17	750	1.71
2SIE71x-2C	71	2	0.75	1.0	3000	2.57
2SIE80-2A	80	2	0.75	1.0	3000	2.52
2SIE80-2B	80	2	1.1	1.5	3000	3.7
2SIE80-4A	80	4	0.55	0.75	1500	3.75
2SIE80-4B	80	4	0.75	1.0	1500	5.12
2SIE80-6A	80	6	0.37	0.50	1000	3.84
2SIE80-6B	80	6	0.55	0.75	1000	5.83
2SIE80-8A	80	8	0.18	0.25	750	2.42
2SIE80-8B	80	8	0.25	0.33	750	3.41
2SIE80x-2C	80	2	1.5	2.0	3000	5.08
2SIE80x-4C	80	4	1.1	1.5	1500	7.61
2SIE80x-6C	80	6	0.75	1.0	1000	7.78
2SIE90L2	90	2	2.2	3.0	3000	7.3
2SIE90L2A	90	2	3.0	4.0	3000	10
2SIE90L4	90	4	1.5	2.0	1500	10.1
2SIE90L6	90	6	1.1	1.5	1000	11.5
2SIE90S2	90	2	1.5	2.0	3000	5.0
2SIE90S4	90	4	1.1	1.5	1500	7.4
2SIE90S6	90	6	0.75	1.0	1000	7.7
2SIE100L2	100	2	3.0	4.0	3000	9.78
2SIE100L2A	100	2	4.0	5.5	3000	13.26
2SIE100L4A	100	4	2.2	3.0	1500	14.59
2SIE100L4B	100	4	3.0	4.0	1500	19.83
2SIE100L6	100	6	1.5	2.0	1000	15.08
2SIE100L6A	100	6	1.85	2.5	1000	18.7
2SIE112M2	112	2	4.0	5.5	3000	13.1
2SIE112M2A	112	2	5.5	7.5	3000	18.0
2SIE112M2B	112	2	7.5	10	3000	24.6
2SIE112M4	112	4	4.0	5.5	1500	26.34
2SIE112M4A	112	4	5.5	7.5	1500	36.48
2SIE112M6	112	6	2.2	3.0	1000	22.0
2SIE112M6A	112	6	3.0	4.0	1000	30.32
2SIE132M2	132	2	9.2	12.3	3000	30.1
2SIE132M2A	132	2	11	15	3000	36.1
2SIE132M4	132	4	7.5	10	1500	49.06
2SIE132M4A	132	4	9.2	12.4	1500	60.18
2SIE132M6A	132	6	4.0	5.5	1000	40.12
2SIE132M6B	132	6	5.5	7.5	1000	55.29
2SIE132S2A	132	2	5.5	7.5	3000	17.93
2SIE132S2B	132	2	7.5	10	3000	24.53
2SIE132S4	132	4	5.5	7.5	1500	35.98
2SIE132S6	132	6	3.0	4.0	1000	30.16
2SIE160L2	160	2	18.5	25	3000	60.2
2SIE160L2A	160	2	22	30	3000	71.71
2SIE160L4	160	4	15	20	1500	97.45
2SIE160L6	160	6	11	15	1000	109.43
2SIE160M2A	160	2	11	15	3000	35.73
2SIE160M2B	160	2	15	20	3000	48.67
2SIE160M4	160	4	11	15	1500	71.46
2SIE160M6	160	6	7.5	10	1000	74.61
2SIE180L2	180	2	30	40	3000	97.61
2SIE180L4	180	4	22	30	1500	143.9
2SIE180L4A	180	4	30	40	1500	195.56
2SIE180L6	180	6	15	20	1000	146.92
2SIE180L6A	180	6	18.5	25	1000	182.14
2SIE180M2	180	2	22	30	3000	71.34
2SIE180M4	180	4	18.5	25	1500	120.19
2SIE200L2A	200	2	30	40	3000	97
2SIE200L2B	200	2	37	50	3000	120
2SIE200L2C	200	2	45	60	3000	146
2SIE200L4	200	4	30	40	1500	194
2SIE200L4C	200	4	37	50	1500	240
2SIE200L4D	200	4	45	60	1500	291
2SIE200L6A	200	6	18.5	25	1000	179
2SIE200L6B	200	6	22	30	1000	213
2SIE200L6C	200	6	30	40	1000	290
2SIE225M2	225	2	45	60	3000	145
2SIE225M2C	225	2	55	75	3000	177
2SIE225M4	225	4	45	60	1500	290
2SIE225M4C	225	4	55	75	1500	354
2SIE225M6	225	6	30	40	1000	290
2SIE225M6C	225	6	37	50	1000	357
2SIE225M6D	225	6	45	60	1000	435
2SIE225S4	225	4	37	50	1500	238
2SIE250M2	250	2	55	75	3000	177
2SIE250M2C	250	2	75	100	3000	241
2SIE250M4	250	4	55	75	1500	354
2SIE250M4C	250	4	75	100	1500	484
2SIE250M6	250	6	37	50	1000	356
2SIE250M6C	250	6	45	60	1000	433
2SIE250M6D	250	6	55	75	1000	530
2SIE280M2	280	2	90	125	3000	289
2SIE280M2C	280	2	110	150	3000	353
2SIE280M4	280	4	90	125	1500	578
2SIE280M4C	280	4	110	150	1500	706
2SIE280M6	280	6	55	75	1000	529
2SIE280M6C	280	6	75	100	1000	723
2SIE280S2	280	2	75	100	3000	241
2SIE280S4	280	4	75	100	1500	481
2SIE280S6	280	6	45	60	1000	432
2SIE315L2	315	2	250	335	3000	801
2SIE315L4	315	4	250	335	1500	1609
2SIE315M2A	315	2	132	175	3000	423
2SIE315M2B	315	2	160	220	3000	513
2SIE315M2C	315	2	200	270	3000	641
2SIE315M4A	315	4	132	175	1500	848
2SIE315M4B	315	4	160	220	1500	1026
2SIE315M4C	315	4	200	270	1500	1285
2SIE315M6A	315	6	90	125	1000	866
2SIE315M6B	315	6	110	150	1000	1058
2SIE315M6C	315	6	132	175	1000	1271
2SIE315M6D	315	6	160	220	1000	1543
2SIE315ML4	315	4	200	270	1500	1285
2SIE315ML6	315	6	160	215	1000	1548
2SIE315S2	315	2	110	150	3000	353
2SIE315S4	315	4	110	150	1500	706
2SIE315S6	315	6	75	100	1000	722
2SIE355H2D	355	2	355	480	3000	1136
2SIE355H2E	355	2	375	503	3000	1200
2SIE355H4D	355	4	355	480	1500	2280
2SIE355H4E	355	4	375	503	1500	2407
2SIE355H6C	355	6	315	420	1000	3033
2SIE355H6D	355	6	355	480	1000	3421
2SIE355H6E	355	6	375	503	1000	3614
2SIE355ML2	355	2	200	270	3000	639
2SIE355ML2A	355	2	250	335	3000	801
2SIE355ML2B	355	2	315	420	3000	1009
2SIE355ML4	355	4	200	270	1500	1282
2SIE355ML4A	355	4	250	335	1500	1603
2SIE355ML4B	355	4	315	420	1500	2020
2SIE355ML6A	355	6	200	270	1000	1931
2SIE355ML6B	355	6	250	335	1000	2412

Similarly like Cantoni IE3 motors, series of IE2 efficiency motors (High Efficiency) are used for various applications like ventilators, pumps, conveyors as well as cranes, washing machines, mixers.

Cantoni Group motors in efficiency class IE2, “2SIE” series, based on the new flexible construction, meets all requirements of the most demanding customers both on electrical and physical parameters and special executions.
