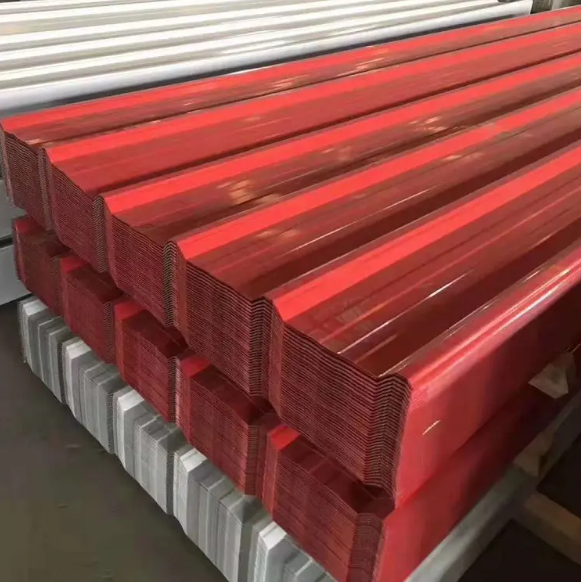

Corrugated sheet size range:

– Thickness: 0.30; 0.40; 0.45; 0.50 mm;
– Width: 1000; 1250 mm;
– Length: on request, by cross-cutting from pre-painted strip.

Basic material:

– Galvanized strip: DX51D + Z140;
– the layer of hot dip zinc coating: 140 g/m².

Organic coating according to EN 10169:
– Upper face: 25µm;
– Lower face: 7µm.
Dimensional tolerance: according to EN 10143.

Colors: according to RAL colors list
