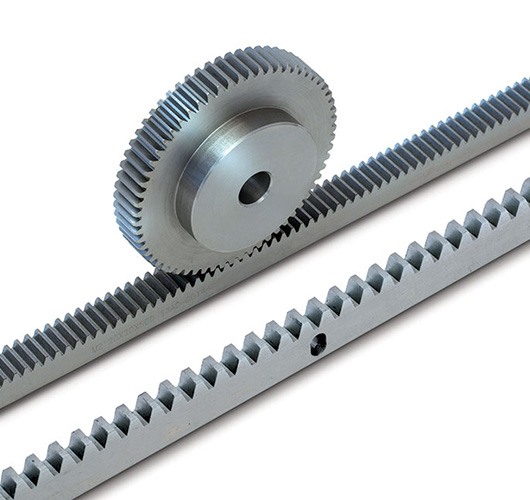

Gear Racks
Gear Racks
Please inspect the table below for manufacturing range of racks. For more information or questions please contact us.
If you are designing rack (and mating pinion) from scratch you can consult us. We would be happy to help you!
Rack Manufacturing Specification
| Module | 2 – 10 mm (or equivalent DP) |
| Pressure Angle | 20° * |
| Length | max. 2000 mm |
| Tooth Length | max. 210 mm |
| Helix Angle | …<90° |
| Material** | Carbon Steels or Alloy Steels
Cast Iron or Cast Steel Aluminum Alloys Plastics (Polyamid, Delrin etc.) |
* It is possible to utilize different pressure angles but 20° is most efficient for general usage. Please consult us on the matter if you are not sure about the choice.
** Materials are certificated and tested against internal and surface cracks where applicable
