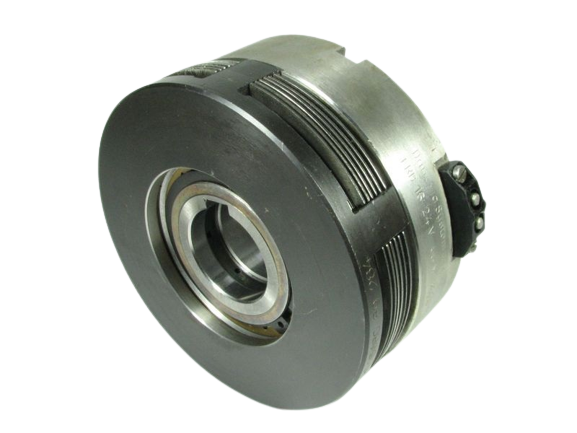

Electromagnetic Multi-Disc Clutches Stromag ERD

• ERD 5
• ERD 10
• ERD 16
• ERD 25
• ERD 40
• ERD 63
• ERD 100
• ERD 160
• ERD 250

Type of Application

Complete sector of machine manufacture.
In particular suitable for Machine tools, Textile machines, Construction machiines, Wrapping machines, Automatic devices and all types of Gearboxes.

Typical Characteristics

Small dimensions – high torque ratings.
Short switching times – precision operation.
Low flywheel effect – high switching frequency.
High wear resistence.
Wet and dry opreation possible.

Method of Operation

Actuated by electrical current:
engaged by D.C. – released by springs.
Actuated by loss of electrical current:
engaged by springs – released by D.C.

Stromag is a German manufacturer of different series of Clutches and Brakes. Main features of Stromag products: designed for dry operation (oil operation);
discs: steel/sintered (steel), transmission torques: 12,5 – 10 000 Nm.
