Electromagnetic Multi-Disc Clutches OGURA MWC
Electromagnetic Multi-Disc Clutches OGURA MWC
(Torque Range: 18~8851ft-lbs / 25~12000Nm)

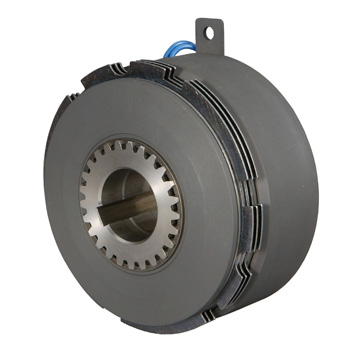

Multiple disk clutches designed for high torque small environment. Clutches are designed to work in oil. Multiple disks produce high torque in a compact design. Separate drive cup allows for easy connection to your gear or pulley. Special oil path grooves in the friction plates allow for quick engagement and response time. Because clutches are used in oil lubrication they have excellent heat dissipation.
Ogura Design Advantage
HIGH-TORQUE COMPACT DESIGN
The MW series are designed as extremely compact multiple disc units that deliver high torque rates.
LONG LIFE AND LOW MAINTENANCE
The MW series stationary field design and oil lubrication system significantly reduce wear and maintenance while increasing operational life.
QUICK RELEASE TIME
Separator springs between the friction plates allow for quick disconnect when the power is released. These springs also keep the disks from making contact with each other in the disengaged mode.
FAST TORQUE BUILDUP
An efficiently etched oil path on the friction disk, coupled with special treatment of the friction disks ensures fast response and release time.
HIGH HEAT DISSIPATION
The oil lubrication system provides excellent heat dissipation making the MW series suitable for heavy duty operation.
EASILY CONNECT TO YOUR GEAR PULLEY OR COUPLING
The MW series is made to be used with the UN drive cup, the cup slides between the friction disk tangs and has a tapped bolt pattern so you can attach your bearing mounted gear pulley.
NOTE:
Dry type multiple disc electromagnetic clutch brake (Model MD) is also available. Electrical features and dimensions are the same as wet type (Model MW).
Models and Dimensions
| Model No. |
Ogura P/N |
Static Torque (ft-lbs) |
max RPM |
Bore (inch) |
Volts/ Watts |
Keyway | Wgt (lbs) |
PIC | DXF | 3D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MWC-1.2 | 23154000 | 18 | 4000 | 20mm | 24/12 | 6×1.7 | 3.00 |  |
 |
 |
 |
| MWC-2.5 | 23154900 | 37 | 3600 | 25mm | 24/17 | 8×1.7 | 4.40 | |
|
|
|
| MWC-5 | 23156000 | 74 | 3200 | 30mm | 24/22 | 8×2 | 6.60 | |
|
|
|
| MWC-10 | 23152700 | 144 | 3000 | 40mm | 24/36 | 12×2.5 | 10.50 | |
|
|
|
| MWC-20 | 23151600 | 288 | 2800 | 50mm | 24/45 | 14×2.5 | 17.00 | |
|
|
|
| MWC-40 | 23015200 | 576 | 2400 | 50mm | 24/50 | 18×3 | 37.00 | |
|
|
|
| MWC-80 | 23031100 | 1152 | 2000 | 70mm | 24/60 | 20×5 | 70.00 | |
|
|
|
| MWC-160 | 23050200 | 2304 | 1600 | 90mm | 24/90 | 25×5 | 140.00 | |
|
|
|
| MWC-250 | 23062500 | 3688 | 1400 | 100mm | 24/110 | 28×6.5 | 174.00 | |
|
|
|
| MWC-320 | 23078100 | 4608 | 1200 | 110mm | 24/125 | 28×9 | 230.00 | |
|
|
|
| MWC-450 | 23084900 | 6640 | 1000 | 120mm | 24/175 | 32×10 | 208.00 | |
|
|
|
| MWC-600 | 23083300 | 8850 | 900 | 140mm | 24/150 | 35×11 | 422.00 | |
|
|
|
