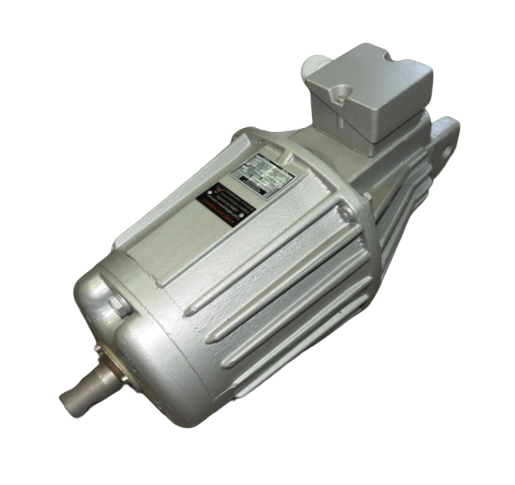

Electrohydraulic Thrusters EMG ELHY EB 500/60
ELECTROHYDRAULIC THRUSTERS EMG ELHY EB
- ELHY EB 12/50
- ELHY EB 20/50
- ELHY EB 50/50
- ELHY EB 80/60
- ELHY EB 125/60
- ELHY EB 150/60
- ELHY EB 250/60
- ELHY EB 320/100
- ELHY EB 630/120
- ELHY EB 50/100
- ELHY EB 80/160
- ELHY EB 125/160
- ELHY EB 150/160
- ELHY EB 250/160
EMG ELHY Electrohydraulic Thruster
The ELHY units are available – with the same functional principle, the same internal design and the same external shape – in three different series The motor housing contains the stator of the drive motor, which is designed as a three-phase asynchronous squirrel-cage motor. The engine is running in the operating fluid.
The electrical connection is made via the terminal box, which tightly seals the motor housing. The feet cast onto the motor housing are used to fix the ELHY unit. The impeller of the pump is mounted on the motor shaft. Above the impeller is the guide cylinder with the axially movable piston. The inside of the unit is filled with hydraulic medium up to the level of the filler opening.
Type TGL35868 |
Lifting force [N] |
Stroke path [mm] |
Power consumption [W] |
Current consumption [A] at 400 V 50 Hz |
Switching frequency with S3 operation [c/h] |
Weight [kg} |
| EB 12… | 220 | 50 | 160 | 0.4 | 2000 | 12 |
| EB 20/… | 300 | 50 | 180 | 0.4 | 2000 | 11 |
| EB50/… | 500 | 50. 100 | 200 | 0.4 | 2000 | 14 – 15* |
| EB80/… | 800 | 60. 160 | 300 | o.s | 2000 | 19 – 26* |
| EB125/… | 1250 | 60 .160 | 400 | 0.7 | 2000 | 19 – 26* |
| EB150/… | 1500 | 60. 160 | 400 | 0.7 | 2000 | 19 – 26* |
| EB 250/ .. | 2500 | 60. 160 | 500 | 0.9 | 2000 | 33 – 40*· |
| EB 320/… | 3200 | 100 | 600 | 1.1 | 2000 | 40 |
| EB 630/… | 6300 | 120 | 850 | 1.6 | 240 | 45 |
Type DIN 15430 |
Lifting force [N] |
Stroke path [mm]** |
Power con-sumption [W] |
Current consumption [A] at 400 V 50 Hz |
Switching frequency with S3 operation [c/h] |
Weight [kg} |
| EB 220-… | 220 | 50 | 160 | 0.4 | 2000 | 12 |
| EB 300-… | 300 | 50 | 180 | 0.4 | 2000 | 11 |
| EB 500-… | 500 | 60. 120 | 200 | 0.4 | 2000 | 14 – 15*· |
| EB 800-… | 800 | 60- 120 | 300 | o.s | 2000 | 19 – 25* |
| EB 1250-… | 1250 | 60- 120 | 400 | 0.7 | 2000 | 26 |
| EB 2000-… | 2000 | 60 – 120 | 500 | 0.8 | 2000 | 33 – 40*· |
| EB 3000-… | 3000 | 60- 120 | 600 | 0.9 | 2000 | 40 |
| EB 6300-… | 6300 | 120 | 850 | 1.6 | 240 | 45 |
EMG Automation GmbH is an manufacturer of Thrusters electrohydraulic for various applications.
