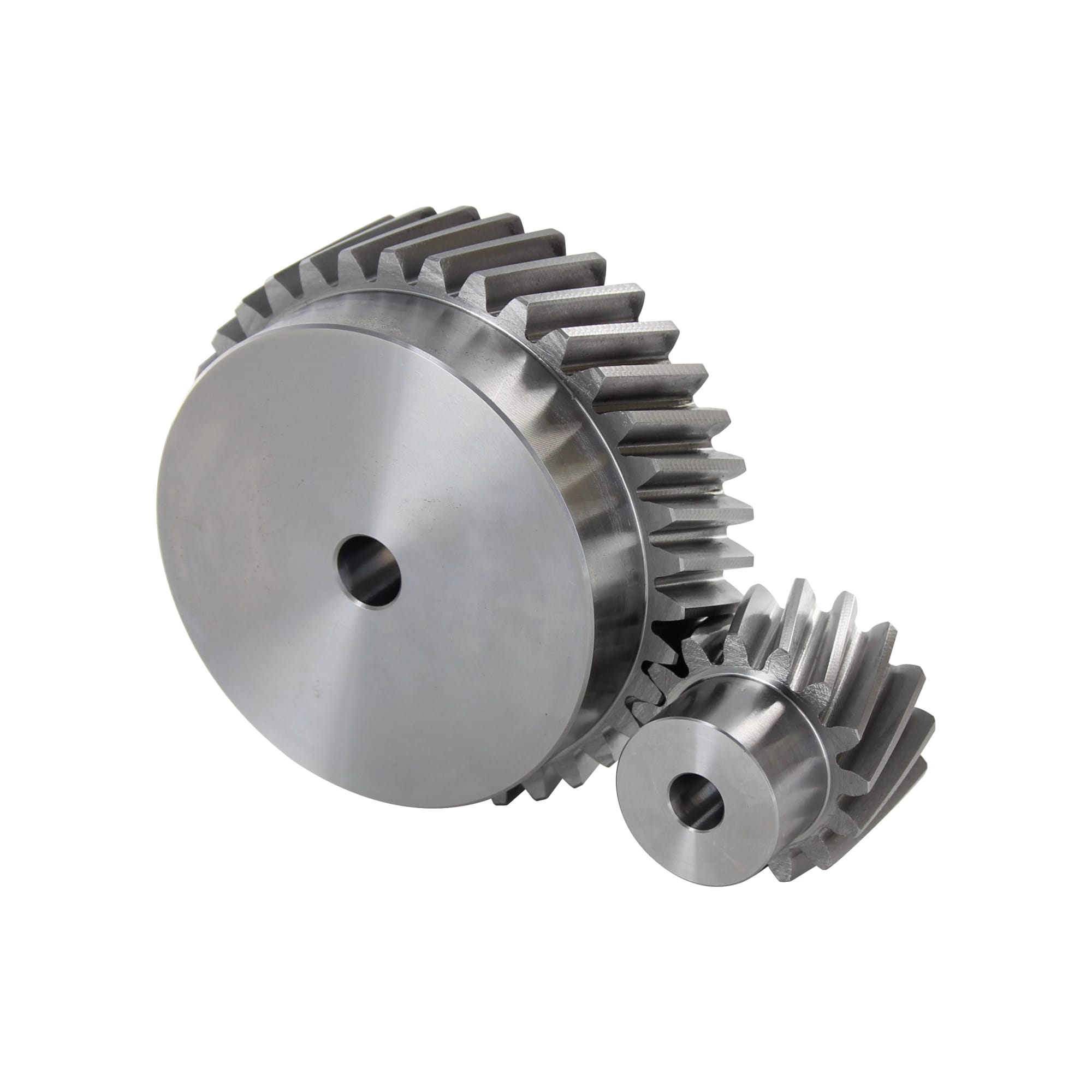

Cylindrical Gears
Cylindrical Gears
- Spur Gears
- Helical Gears
- Herringbone Gears
Please inspect the table below for manufacturing range of racks. For more information or questions please contact us.
If you are designing gears from scratch you can consult us. We would be happy to help you!
Cylindrical Gear Manufacturing Specification
| Module | 0.5 – 16 mm (or equivalent DP) |
| Pressure Angle | 20° * |
| Helix Angle | …<90° |
| Diameter | max. 1500 mm |
| Profile Grinding | Module: 2 – 10 mm Diameter: max. 800 mm Helix Angle: …<90° Pressure Angle: 20° * |
| Material** | Carbon Steels or Alloy Steels
Cast Iron or Cast Steel Aluminum Alloys Plastics (Polyamid, Delrin etc.) |
* It is possible to utilize different pressure angles but 20° is most efficient for general usage. Please consult us on the matter if you are not sure about the choice.
** Materials are certificated and tested against internal and surface cracks where applicable
