Concave Milling Cutters
Concave Milling Cutters

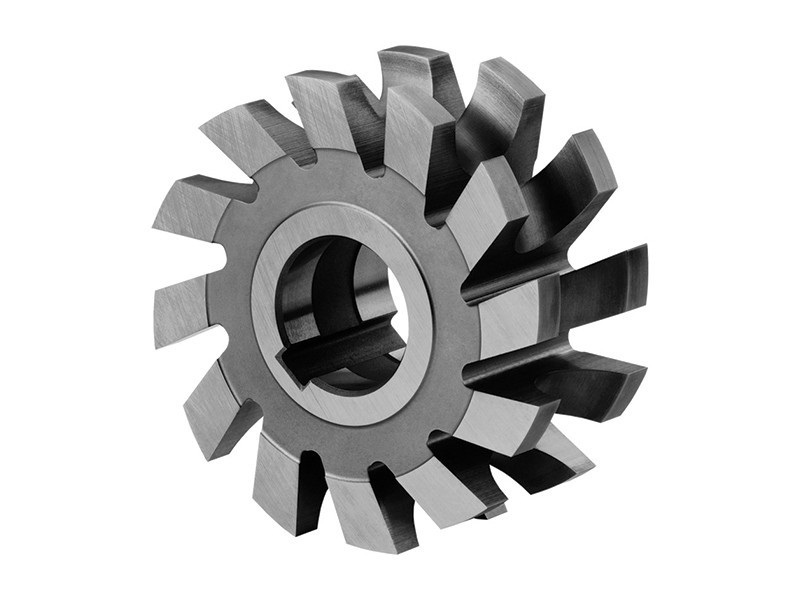

We are a Manufacturer and Exporter of Concave Milling Cutters.The cutters are used for many purposes, including beading, decorative work, and finishing on sheet metal. We have maintained the reputation of designing and manufacturing high-quality products based on customer demands. Concave Milling Cutters come in bore type that facilitates the production of convex forms on different components.
These are form-relieved steel cutters of high speed that are used for milling convex half circles in all materials. The Concave Milling Cutter is specially designed to produce an outward-curving half-circle. These are suited for half-circular as well as quarter-circular cutting. Concave Milling Cutter Manufactured by us is made from high-quality raw material; it ensures world-class quality and the best performance. DIC Concave Milling Cutters are easy to sharpen and maintain the original form by grinding on the surface.
Features:
-
- Material: M2, M35, M42, ASP 2030 & ASP 2052
- Hardness: 60- 64 HRC
- Diameter : 50 – 125mm
- Cutter Radius : 1.6 – 20
- Teeth Number : 48 to 50
- Thickness : 0.5 to 20mm
- Coatings : TIN and TIALN
- Types : Imperial Concave cutters and Metric concave cutters
- Application/Usage : Concave HSS Milling Cutter producing half circles.
We can also customize as per customer requirements or drawing.
| Diameter | Radius | Width | Bore |
|---|---|---|---|
| 50 | 1.6 | 8 | 22 |
| 50 | 2 | 9 | 22 |
| 56 | 1.5 | 6 | 22 |
| 56 | 1.6 | 8 | 22 |
| 56 | 2 | 8 | 22 |
| 56 | 2.5 | 10 | 22 |
| 63 | 2.5 | 10 | 22 |
| 63 | 3 | 12 | 22 |
| 63 | 3.2 | 12 | 22 |
| 63 | 3.5 | 14 | 22 |
| 63 | 4 | 16 | 22 |
| 63 | 5 | 20 | 22 |
| 70 | 6 | 24 | 22 |
| 70 | 7 | 28 | 22 |
| 80 | 6 | 24 | 27 |
| 80 | 8 | 32 | 27 |
| 90 | 9 | 28 | 27 |
| 90 | 10 | 36 | 27 |
| 100 | 10 | 36 | 27 |
| 100 | 11 | 36 | 27 |
| 100 | 12 | 40 | 27 |
| 100 | 12.5 | 40 | 27 |
| 100 | 14 | 40 | 27 |
| 110 | 16 | 50 | 32 |
| 125 | 16 | 50 | 32 |
| 125 | 20 | 60 | 32 |
