Chain Sprocket Milling Cutters
Chain Sprocket Milling Cutters

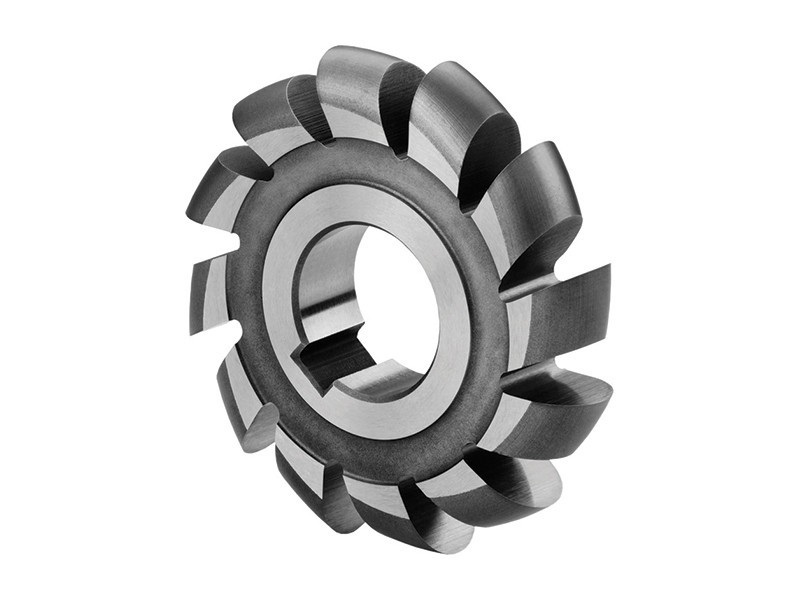

We are a Manufacturer and Exporter of Chain Sprocket Milling Cutters with a profile suitable for milling sprockets. The Milling Cutters have incredibly sharp teeth for accurate and quick cutting of rigid material. These cutters will have machine-relieved teeth radially. Our tools are made from high-quality raw materials, ensuring world-class quality and the best performance.
We provide all material and size ranges based on the customer’s specific drawings and sizes. The cutters are exported to various countries worldwide.
- Material : M2, M35, M42, ASP 2030 & ASP 2052
- Standards: AISI, IS, JIS, DIN, ISO, BS Standard.
- Roller Diameter (inches ): 0.13 to 1.9
- Pitch (inches) : 0.25 to 3
- Number of teeth : 11-16
- Application/usage : used for milling of chain sprockets
- Customization of sizes, diameter is also available as per customer specific requirements.
| Sprocket (Inch) | Pitch (mm) | Role | D | d | Metarial |
|---|---|---|---|---|---|
| 1/4″ | 6.35 | 3.3 | 63 | 22 | HSS |
| 5/16″ | 8 | 5 | 63 | 22 | HSS |
| 3/8″ | 9.525 | 5.08 | 71 | 22 | HSS |
| 3/8″ | 9.525 | 6 | 71 | 22 | HSS |
| 3/8″ | 9.525 | 6.35 | 71 | 22 | HSS |
| 1/2″ | 12.7 | 7.75 | 71 | 22 | HSS |
| 1/2″ | 12.7 | 7.77 | 71 | 22 | HSS |
| 1/2″ | 12.7 | 7.95 | 71 | 22 | HSS |
| 1/2″ | 12.7 | 8.51 | 71 | 22 | HSS |
| 5/8″ | 15.875 | 10.16 | 90 | 27 | HSS |
| 3/4″ | 19.05 | 11.91 | 90 | 27 | HSS |
| 3/4″ | 19.05 | 12.07 | 90 | 27 | HSS |
| 1″ | 25.4 | 15.88 | 100 | 27 | HSS |
| 1-1/4″ | 31.75 | 19.05 | 112 | 32 | HSS |
