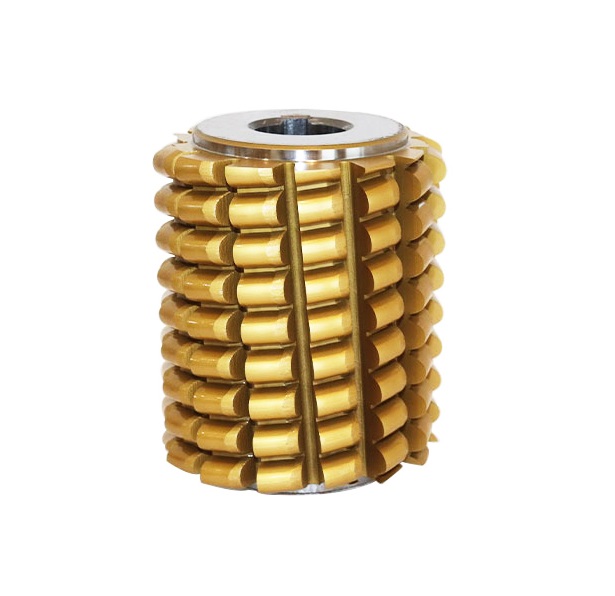

Chain Sprocket Hobs
We are a Manufacturer and Exporter of Chain Sprocket Hobs, designed to produce accurate finishes on several tooth forms. Chain Sprocket hobs generate gears of maximum accuracy with different profiles. The material used for these hobs is S390/ASP2052/ASP2030/S290/ASP2060/M35/M42/M2. The accuracy class is AAA/AA as per DIN 3968, conforming to ANSI, ASA, IS, DIN, and JIS-B.
Marex provides high-quality Chain Sprocket Hobs as per customer requirements.
- Standards: ANSI, ASA, IS, DIN, JIS-B
- Types: Topping & Non-topping
- Threads: Single or multi-threads for high-speed cutting.
- Sprocket Pitch Range: 3.5 inch or 90mm
| Pitch For Chain | Roll Dia. | Out Dia | Overall Length | Bore Dia. |
|---|---|---|---|---|
| 6 | 4 | 70 | 60 | 27 |
| 6.35 | 3.3 | 70 | 60 | 27 |
| 8 | 5 | 70 | 60 | 27 |
| 9.525 | 5.08 | 70 | 60 | 27 |
| 9.525 | 6.35 | 70 | 60 | 27 |
| 12.7 | 7.77 | 80 | 70 | 27 |
| 12.7 | 8.51 | 80 | 70 | 27 |
| 15.875 | 10.16 | 90 | 85 | 32 |
| 19.05 | 11.91 | 100 | 100 | 32 |
| 25.4 | 15.88 | 115 | 115 | 32 |
| 31.75 | 19.05 | 125 | 135 | 32 |
| 38.1 | 22.23 | 140 | 150 | 40 |
| 44.45 | 25.4 | 150 | 180 | 40 |
| 50.8 | 28.58 | 160 | 200 | 40 |
| 57.15 | 35.71 | 180 | 240 | 40 |
| 63.8 | 39.68 | 180 | 240 | 40 |
| 76.2 | 47.63 | 240 | 320 | 60 |
