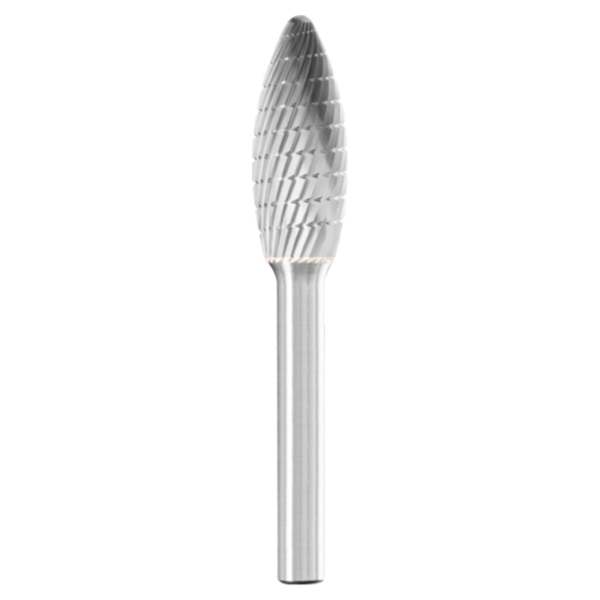

Carbide Rotary Burrs FLH

Carbide Rotary Burrs FLH

Carbide Rotary Burrs FLH

The MAREX tungsten carbide burrs are designed for the most demanding and long-lasting jobs, thus allowing the professional an excellent ratio of quality and performance in metal grinding and roughing.



ADVANTAGES
  • Full tungsten head
  • Professional welding
  • High material removal capability
  • Available from 3 to 16mm diameter
  • Length from 33 to 163mm
  • Resistance to breakage
  • Long tool life

The MAREX rotary tungsten carbide burr consists of a fully tungsten-formed solid head, specially prepared for removing, levelling and working on welding seams. Mainly intended for rapid material removal, this feature helps the operator to shorten the usage time and save energy.

The tungsten carbide burr has three types of cutters based on DIN8033 standard, cross cut (universal use), single cut (use for finishing) and spaced single cut (aluminum use).

In the MAREX range, we have available the following shapes according to DIN8032 standard:

Shape A (ZYA)
Shape B with end tooth (ZYAS)
Shape C (WRC)
Shape D (KUD)
Shape E (TRE)
Shape F (RBF)
Shape G (SPG)
Shape H (FLH)
Shape J (KSJ)
Shape K (KSK)
Shape M (SKM)
Shape L (KEL)
Shape N (WKN)
Shape RIM

Also available in a set of 5 pieces of 10mm diameter in plastic box (ZYAS, WRC, SPG, RBF and KUD).



Material Tungsten
Suitable for Steel, stainless steel, copper, bronze, cast iron, low alloy steel
Compatible machine Electric or pneumatic straight grinder





Shape

(DIN8032)

Diameter + Working length (mm) Total length

(mm)

Shank Diameter

(mm)

Tooth type (DIN8033) (mm)
FLH 3 x 8 38 3 Simple
FLH 3 x 8 38 3 Double
FLH 6 x 14 50 6 Double
FLH 6 x 14 50 6 Simple
FLH 8 x 20 60 6 Double
FLH 12 x 30 77 6 Simple
FLH 12 x 30 70 6 Double
