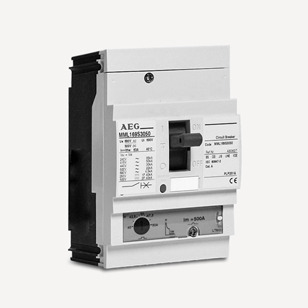

AEG Moulded Case Circuit Breakers MM169 160A modular
AEG Moulded Case Circuit Breakers MM169 160A modular
The breakers type MM169 have a modular front design and they are suitable to be mounted beside the breakers serie Elfa 90. The rated current is from 16 to 160A and the short circuit capacity is very high, up to 150kA.
The breakers are available as 3 or 4 pole version, with many protection combinations: Line thermomagnetic, Generator, Magnetic Motor protection, Isolator.
The serie MM169 has also a complete set of accessories as rear and front connections, plug in base, add on RCD, Motor operation, shunt trip, under voltage trip, auxiliary contacts etc. The breakers are equipped with terminals for connections of flexible cables up to 95mm2.
- Thermal setting (In) (A)
- 16-160
- Rated voltage AC (Un)
- 500Vac
- Rated insulation voltage Ui (Volts)
- R,L= 500; N=690; S,H,X=750;
- Ultimate breaking capacity Icu @400/415V AC(kA)
- R=18, L=25, N=36, S=50, H=80, X=150,
- Category of use
- A
- Non automatic breaker (Switch)
- 63A, 160A
- Weights
- 0,9kg 3P; 1,3Kg 4P
- Dimensions (w x h x d) mm
- 3P=81 x 130 x 85; 4P=108 x 130 x 85;
- Endurance CO operations Mechanical/Electrical at In
- R,L,N = 10000/5000/; S,H,X=25000/10000
- Mounting
- On symmetrical DIN Rail, Fixed, Plug in
- Approval / Marking
- CE
