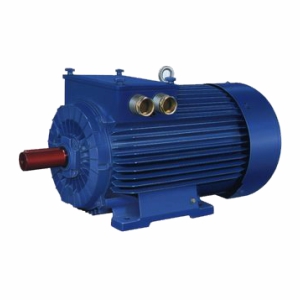

2Sg Sg Sh series Three-phase “Multi-Speed general purpose” squirrel cage Motor

2Sg Sg Sh series Three-phase “Multi-Speed general purpose” squirrel cage Motor

2Sg Sg Sh series Three-phase "Multi-Speed general purpose" squirrel cage Motor

2Sg Sg Sh series Three-phase “Multi-Speed general purpose” squirrel cage Motor



CATALOGUE VERSION

Operating duty S1
Rated voltage 400V
Frequency 50Hz
Synchronous speed 3000, 1500 or 1000rpm
Insulation class F
Degree of protection IP55
Ambient temperature up to +40°C
Mounting arrangement IM1001 (IMB3 – on feet)



OTHER NON CATALOGUE VERSIONS ARE AVAILABLE ON REQUEST



Symbol Frame size Number of poles Rated output [kW] Rated output [HP] Synchronous speed [rpm] Rated torque [Nm]
Sh71-4_2A 71 4|2 0.21|0.28 0.28|0.37 1500|3000 1.43|0.96
Sh71-4_2AW 71 4|2 0.07|0.28 0.09|0.37 1500|3000 0.48|0.96
Sh71-4_2B 71 4|2 0.3|0.45 0.4|0.60 1500|3000 2.05|1.52
Sh71-4_2BW 71 4|2 0.12|0.50 0.16|0.67 1500|3000 0.84|1.71
Sh71-6_4A 71 6|4 0.06|0.18 0.08|0.24 1000|1500 0.61|1.23
Sh71-6_4B 71 6|4 0.18|0.25 0.24|0.34 1000|1500 1.95|1.77
Sh71-6_4C 71 6|4 0.25|0.37 0.33|0.50 1000|1500 2.65|2.45
Sh71-8_4AW 71 8|4 0.06|0.18 0.08|0.24 750|1500 0.84|1.21
Sh71-8_4BW 71 8|4 0.09|0.25 0.12|0.34 750|1500 1.26|1.67
Sh80-4_2A 80 4|2 0.45|0.60 0.6|0.80 1500|3000 3.16|2.09
Sh80-4_2AW 80 4|2 0.15|0.70 0.2|0.92 1500|3000 1.04|2.45
Sh80-4_2B 80 4|2 0.75|1.0 1.0|1.27 1500|3000 5.27|3.44
Sh80-4_2BW 80 4|2 0.25|1.0 0.33|1.27 1500|3000 1.75|3.44
Sh80-6_2C 80 6|2 0.18|0.6 0.24|0.8 1000|3000 1.8|2.1
Sh80-6_4A 80 6|4 0.12|0.37 0.16|0.50 1000|1500 1.19|2.54
Sh80-6_4B 80 6|4 0.18|0.55 0.24|0.74 1000|1500 1.77|3.81
Sh80-6_4C 80 6|4 0.25|0.75 0.33|1.0 1000|1500 2.51|5.08
Sh80-8_4A 80 8|4 0.22|0.40 0.29|0.54 750|1500 3.13|2.83
Sh80-8_4AW 80 8|4 0.12|0.50 0.16|0.66 750|1500 1.71|3.54
Sh80-8_4B 80 8|4 0.30|0.55 0.40|0.74 750|1500 4.34|3.89
Sh80-8_4BW 80 8|4 0.15|0.70 0.20|0.92 750|1500 2.17|4.95
PSh90L-4_2 90 4|2 1.6|2.4 2.10|3.3 1500|3000 10.88|8.24
Sh90-4_2L 90 4|2 0.9|1.4 1.19|1.9 1500|3000 6.32|4.86
Sh90-4_2S 90 4|2 0.8|1.1 1.06|1.5 1500|3000 5.58|3.78
Sh90-6_4L 90 6|4 0.55|0.90 0.73|1.19 1000|1500 5.65|6.23
Sh90-8_2L 90 8|2 0.25|0.9 0.33|1.21 750|3000 3.36|3.02
Sh90-8_2S 90 8|2 0.18|0.75 0.24|1.0 750|3000 2.5|2.61
Sh90-8_4L 90 8|4 0.55|1.0 0.73|1.3 750|1500 7.84|7.07
Sh90-8_4S 90 8|4 0.37|0.7 0.49|0.94 750|1500 5.12|4.84
Sh90L-4_2B 90 4|2 1.4|2.0 1.90|2.7 1500|3000 9.52|6.95
Sh90L-6_4 90 6|4 0.75|1.2 1.0|1.61 1000|1500 7.62|8.13
Sh90L-8_2 90 8|2 0.37|1.5 0.5|2.0 750|3000 5.2|5.12
Sh90L-8_4 90 8|4 0.55|1.0 0.75|1.36 750|1500 7.56|6.92
Sh90S-4_2A 90 4|2 1.1|1.4 1.50|1.9 1500|3000 7.45|4.8
Sh90S-6_4 90 6|4 0.63|0.9 0.85|1.21 1000|1500 6.33|6.03
Sh90S-8_2 90 8|2 0.28|1.1 0.37|1.5 750|3000 3.82|3.69
Sh90S-8_4 90 8|4 0.37|0.75 0.5|1.0 750|1500 5.01|5.17
Sg100L-4_2A 100 4|2 2.0|2.6 2.70|3.5 1500|3000 13.69|8.84
Sg100L-4_2B 100 4|2 2.5|3.3 3.40|4.5 1500|3000 17.3|11.79
Sg100L-6_4A 100 6|4 0.9|1.3 1.21|1.8 1000|1500 8.95|8.62
Sg100L-6_4B 100 6|4 1.2|1.7 1.6|2.3 1000|1500 11.94|11.31
Sg100L-8_2 100 8|2 0.5|2.2 0.7|2.9 750|3000 6.68|7.22
Sg100L-8_4A 100 8|4 0.7|1.25 0.94|1.7 750|1500 9.35|8.38
Sg100L-8_4B 100 8|4 0.9|1.7 1.21|2.3 750|1500 12.02|11.47
Sg112M-4_2 112 4|2 3.3|4.5 4.50|6.2 1500|3000 21.96|15
Sg112M-6_4 112 6|4 1.6|2.4 2.10|3.3 1000|1500 15.67|15.75
Sg112M-8_4 112 8|4 1.6|3.0 2.1|4.0 750|1500 21.37|20.25
Sg112M-8_6 112 8|6 1.2|1.6 1.6|2.1 750|1000 15.92|16
PSg132M-4_2 132 4|2 7.5|10 10.00|13.6 1500|3000 49.23|32.71
PSg132M-12_6 132 12|6 1.8|4.0 2.4|5.5 500|1000 36.57|40.64
Sg132M-4_2 132 4|2 6.0|7.2 8.10|9.6 1500|3000 39.52|23.59
Sg132M-4_2B 132 4|2 6.2|7.5 8.40|10 1500|3000 40.83|24.53
Sg132M-6_4 132 6|4 3.1|4.7 4.2|6.4 1000|1500 30.68|31.06
Sg132M-8_2 132 8|2 1.1|4.0 1.5|5.4 750|3000 14.29|12.97
Sg132M-8_4 132 8|4 3.2|5.4 4.3|7.4 750|1500 43.04|36.45
Sg132M-8_6_4 132 8|6|4 2.1|2.6|3.9 2.9|3.5|5.4 750|1000|1500 27.85|25.47|26.14
Sg132S-4_2 132 4|2 4.7|5.7 6.40|7.8 1500|3000 31.06|18.8
Sg132S-6_4 132 6|4 2.5|3.5 3.40|4.8 1000|1500 24.61|23.21
Sg132S-8_4 132 8|4 2.5|4.2 3.4|5.8 750|1500 33.63|28.45
Sg132S-8_4_2 132 8|4|2 1.5|2.2|2.8 2.0|3.0|3.8 750|1500|3000 19.76|14.44|9.32
Sg132S-8_6_4 132 8|6|4 1.5|2.0|3.0 2.0|2.7|4.0 750|1000|1500 19.76|19.69|20.11
Sg160L-4_2 160 4|2 13|16 17.50|21.4 1500|3000 85.33|52.42
Sg160L-6_4 160 6|4 7.0|10.8 9.4|14.7 1000|1500 68.92|71.13
Sg160L-6_4_2 160 6|4|2 5.5|8.3|10.9 7.5|11.1|14.9 1000|1500|3000 54.43|54.1|35.46
Sg160L-8_4 160 8|4 7.2|12 9.6|16.3 750|1500 95.5|79.58
Sg160L-8_4_2 160 8|4|2 3.7|7.4|9.6 5.1|9.9|13 750|1500|3000 49.07|47.91|31.07
Sg160L-8_6_4 160 8|6|4 4.7|5.9|8.1 6.4|8.0|10.9 750|1000|1500 61.91|57.79|53.72
Sg160L-12_6 160 12|6 3.8|7.7 5.2|10.3 500|1000 78.04|77.41
Sg160L-12_8_6_4 160 12|8|6|4 2.4|3.5|4.9|6.7 3.3|4.8|6.7|9.0 500|750|1000|1500 48.25|45.79|48.74|43.97
Sg160M-4_2 160 4|2 10|12 13.60|16.3 1500|3000 65.86|39.52
Sg160M-6_4 160 6|4 5.2|7.4 7.1|9.9 1000|1500 51.46|48.74
Sg160M-6_4_2 160 6|4|2 4.0|6.2|7.7 5.5|8.4|10.3 1000|1500|3000 39.38|40.28|24.97
Sg160M-8_4 160 8|4 4.7|8.4 6.4|11.3 750|1500 61.91|55.9
Sg160M-8_4_2 160 8|4|2 2.7|5.3|7.0 3.6|7.2|9.4 750|1500|3000 35.57|34.31|22.74
Sg160M-8_6_4 160 8|6|4 3.5|4.6|6.4 4.8|6.3|8.6 750|1000|1500 46.1|45.06|42.59
Sg160M-12_6 160 12|6 2.6|5.5 3.5|7.5 500|1000 52.27|55.29
Sg160M-12_8_6_4 160 12|8|6|4 1.7|2.6|3.4|4.9 2.3|3.5|4.6|6.7 500|750|1000|1500 33.82|34.01|33.65|32.16
Sg180L-4_2 180 4|2 17.5|24 23.6|32.5 1500|3000 112.92|77.96
Sg180L-6_4 180 6|4 8.5|13 11.40|17.5 1000|1500 82.41|84.46
Sg180L-8_2 180 8|2 4.7|18.5 6.3|24.8 750|3000 61.91|59.79
Sg180L-8_4 180 8|4 10|15.8 13.6|21.1 750|1500 130.82|103.35
Sg180L-8_6 180 8|6 8.0|11 10.7|15 750|1000 104.66|107.19
Sg180L-8_6_4 180 8|6|4 6.0|7.3|10.5 8.1|9.7|14.3 750|1000|1500 77.43|70.78|68.21
Sg180M-4_2 180 4|2 14.5|19.5 19.40|26.4 1500|3000 94.2|63.56
SIE200L4_2-K 200 4|2 26|33 35|44 1500|3000 168|107
SIE200L4_2W-K 200 4|2 8.0|32 10.7|43 1500|3000 52.1|104
SIE200L6_4-K 200 6|4 16|23 21|31 1000|1500 155|149
SIE200L6_4W-K 200 6|4 9.0|26 12.1|35 1000|1500 87|169
SIE200L8_4-K 200 8|4 17|27 23|36 750|1500 219|175
SIE200L8_4W-K 200 8|4 7.0|28 9.4|38 750|1500 90.9|182
SIE200L8_6-K 200 8|6 12|16 16|21 750|1000 155|155
SIE200L8_6_4-K 200 8|6|4 12.5|14.5|21 17|19|28 750|1000|1500 161|140|136
SIE200L8_6B-K 200 8|6 14.5|19 19.5|25.5 750|1000 187|185
SIE200L12_4-K 200 12|4 5.0|19.5 7.0|26 500|1500 97|127
SIE200L12_6BW-K 200 12|6 4.0|17 5.5|23 500|1000 78|164
SIE200L16_8W-K 200 16|8 2.5|11 3.4|15 375|750 65|142
SIE225M12_4-K 200 12|4 9.0|27 12|36 500|1000 175|174
SIE225M4_2-K 225 4|2 36|45 48|60 1500|3000 232|145
SIE225M4_2W-K 225 4|2 11|44 15|59 1500|3000 70.9|143
SIE225M6_4-K 225 6|4 25|35 34|47|47 1000|1500 241|226
SIE225M6_4W-K 225 6|4 13|37 17|50 1000|1500 126|239
SIE225M8_4-K 225 8|4 26|37 35|50 750|1500 337|240
SIE225M8_4_2-K 225 8|4|2 15|25|35 20|34|48 750|1500|3000 194|161|113
SIE225M8_4W-K 225 8|4 9.0|36 12.1|48 750|1500 116|233
SIE225M8_6-K 225 8|6 21|28 28|38 750|1000 271|272
SIE225M8_6_4-K 225 8|6|4 20|23|30 27|31|40 750|1000|1500 260|223|194
SIE225M12_6-K 225 12|6 12|22 16|29 500|1000 232|213
SIE225M16_8W-K 225 16|8 4.4|18.5 6.0|25 375|750 76.8|89.7
SIE225S4_2-K 225 4|2 30|38 40|51 1500|3000 194|123
SIE225S4_2W-K 225 4|2 9.5|38 12.7|51 1500|3000 61.5|123
SIE225S6_4-K 225 6|4 21|30 28|40 1000|1500 204|195
SIE225S6_4W-K 225 6|4 12|33 16|44 1000|1500 116|214
SIE225S8_4-K 225 8|4 22|32 29|43 750|1500 285|207
SIE225S8_4W-K 225 8|4 8.0|32 10.7|43 750|1500 103|207
SIE225S8_6-K 225 8|6 17.5|23 23|31 750|1000 226|222
SIE225S8_6_4-K 225 8|6|4 16|20|26 21|27|35 750|1000|1500 206|193|168
SIE225S12_6-K 225 12|6 10|18.5 13|25 500|1000 193|180
SIE225S12_8_6_4-K 225 12|8|6|4 8.0|11|19|21 11|15|26|28 500|750|1000|1500 155|141|185|135
2Sg250M4_2 250 4|2 51|62 68|83 1500|3000 328|200
2Sg250M4_2W 250 4|2 16|64 21|86 1500|3000 103|208
2Sg250M6_4 250 6|4 30|45 40|60 1000|1500 289|289
2Sg250M6_4W 250 6|4 15|45 20|60 1000|1500 145|291
2Sg250M8_4 250 8|4 34|49 46|66 750|1500 441|317
2Sg250M8_4W 250 8|4 12|48 16|64 750|1500 155|310
2Sg250M8_4z 250 8|4 37|53 50|71 750|1500 479|342
2Sg250M8_6 250 8|6 24|31 32|42 750|1000 310|299
2Sg250M8_6_4 250 8|6|4 24|27|38 32|36|51 750|1000|1500 312|262|245
2Sg250M12_6W 250 12|6 7.5|30 10|40 500|1000 146|290
2Sg280M4_2 280 4|2 75|90 100|121 1500|3000 482|290
2Sg280M4_2W 280 4|2 23|90 31|121 1500|3000 148|290
2Sg280M6_4 280 6|4 52|77 70|103 1000|1500 503|496
2Sg280M6_4W 280 6|4 25|75 34|100 1000|1500 243|484
2Sg280M8_4 280 8|4 60|80 80|107 750|1500 782|518
2Sg280M8_4W 280 8|4 20|80 27|107 750|1500 258|517
2Sg280M8_6 280 8|6 42|55 56|74 750|1000 542|533
2Sg280M8_6_4 280 8|6|4 34|42|55 46|56|74 750|1000|1500 439|407|355
2Sg280M12_6 280 12|6 26|44 35|59 500|1000 502|424
2Sg280M12_8 280 12|8 20|22 27|30 500|750 388|283
2Sg280S4_2 280 4|2 63|73 84|98 1500|3000 405|236
2Sg280S4_2W 280 4|2 18|72 27|97 1500|3000 116|232
2Sg280S6_4 280 6|4 45|65 60|87 1000|1500 434|419
2Sg280S6_4W 280 6|4 22|65 29|87 1000|1500 214|419
2Sg280S8_4 280 8|4 46|60 62|80 750|1500 595|387
2Sg280S8_4W 280 8|4 15|60 20|80 750|1500 194|387
2Sg280S8_6 280 8|6 33|44 44|59 750|1000 426|424
2Sg280S8_6_4 280 8|6|4 29|38|47 39|51|63 750|1000|1500 374|367|303
2Sg280S12_6 280 12|6 21|38 28|51 500|1000 408|368
2Sg315M4_2 315 4|2 95|115 127|154 1500|3000 640|370
2Sg315M6_4A 315 6|4 62|96 83|129 1000|1500 600|620
2Sg315M8_4 315 8|4 90|125 121|168 750|1500 1173|812
2Sg315M8_6 315 8|6 55|75 74|100 750|1000 711|725
2Sg315M12_6 315 12|6 33|67 44|90 500|1000 637|646
2Sg315M12_8_6 315 12|8|6 30|35|60 41|48|82 500|750|1000 579|454|579
